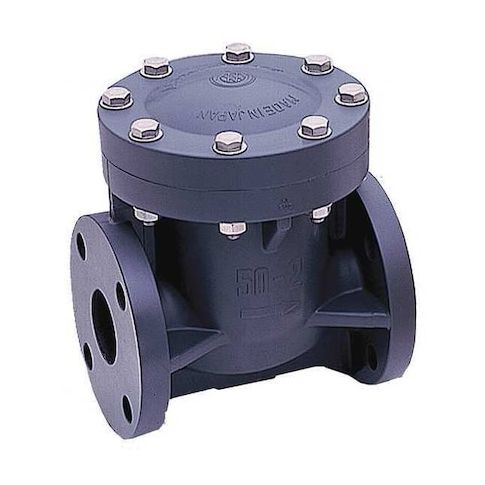

Swing Check Valve, Inline, 2 1/2 in, Flange x Flange, PVC Body, EPDM Seat MPN:1201025
The Asahi 2-1/2in Flanged PVC Swing Check Valve is a reliable and durable solution for applications where flow control and backflow prevention are critical. Suitable for use in horizontal or vertical orientations, this valve features a single flow design and is made from high-quality PVC materials, ensuring long-lasting performance in temperatures ranging from 30°F to 120°F. Ideal for water supply systems, chemical processing, and wastewater treatment, this valve provides full flow capabilities and meets the demands of high-pressure applications up to 150 psi. Its compact design and easy installation make it a popular choice for industrial and commercial settings.
Top product features:
- 2-1/2in Flanged PVC Swing Check Valve allows for full flow in both directions.
- The valve has a cracking pressure of 1 psi.
- The valve is designed for horizontal and vertical mounting.
Top product applications:
- Water treatment systems
- Wastewater treatment plants
- Hydronic heating systems
ASAHI 1201025 is an inline swing check valve for use with compatible chemicals and water. It uses a swing mechanism for one-way flow applications in piping systems. This valve features a PVC body with EPDM seat and seal materials, a single full-flow design, and flanged 2 1/2 in. connections.
Key Features:
- Swing check mechanism: hinged disc design for one-way flow applications.
- Body style: inline PVC construction.
- Connection type: flange x flange
- ANSI Flange Class 150.
- Valve size: 2 1/2 in. nominal size with 2 1/2 in. connections on both sides.
- Seal and seat material: EPDM.
- Cracking pressure: 1 psi.
- Pressure rating: 150 psi maximum operating pressure
- 150 psi at 120 degrees F maximum water pressure.
- Temperature range: 30 degrees F minimum to 120 degrees F maximum.
- Flow design: single, full flow.
- Mounting orientation: horizontal or vertical.
- Cv: 250.
- Overall dimensions: 9.45 in. overall length, 6 1/2 in. overall height, 7 in. width.
- Standards: ASTM D1784 Cell Class 12454A.
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
