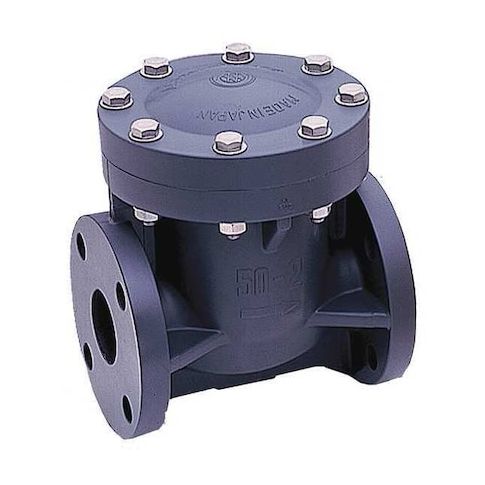

Swing Check Valve, Inline, 8 in, Flange x Flange, PVC Body, EPDM Seat & Seal MPN:1201080

• ASAHI 1201080 is an 8 in. inline swing check valve with a PVC body and flanged connections on both ends. It is intended for use with water and compatible chemicals, using a hinged swing mechanism for one-way flow applications and to help prevent reverse flow in piping systems. This valve features a full-flow design, a 1 psi cracking pressure, and can be mounted horizontally or vertically.

  Key Features:

  • Valve type: Swing check valve with inline body design
  • Size: 8 in. nominal valve size with 8 in. flange connections on side 1 and side 2
  • Connection type: Flange x Flange, ANSI Flange Class 150
  • Body material: PVC
  • Seal and seat material: EPDM
  • Flow design: Single, full flow
  • Cracking pressure: 1 psi
  • Pressure rating: 70 psi maximum operating pressure
  • 70 psi at 120 degrees F maximum water pressure
  • Temperature range: 30 degrees F to 120 degrees F
  • Mounting orientation: Horizontal, vertical
  • Cv: 1,900
  • Overall length: 19.69 in.
  • Overall height: 13 7/64 in.
  • Standards: ASTM D1784 Cell Class 12454A
