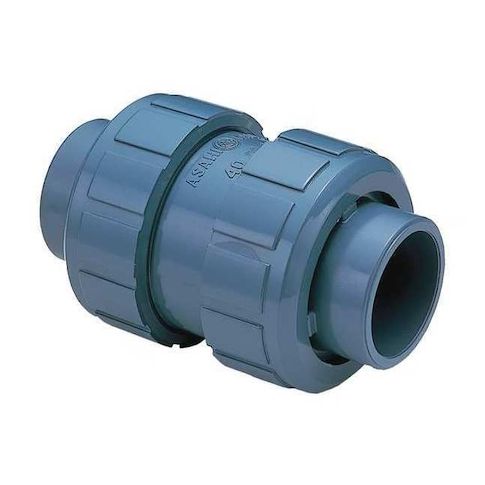

Ball Check Valve, Inline, 1/2 in Pipe Size, Socket x Socket, PVC Body MPN:1210005
The Asahi 1/2in Socket PVC Ball Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and plumbing systems. Its inline ball design allows for smooth flow and easy installation, while the PVC body and EPDM seal ensure durability and resistance to corrosion. With a cracking pressure of 1 psi and a maximum water pressure of 150 psi, this valve can handle a range of pressures and temperatures. Ideal for use in horizontal or vertical orientations, it's perfect for residential, commercial, or industrial projects where a reliable check valve is essential.
Top product features:
- Single flow design for inline application
- Inline ball mechanism for easy installation and maintenance
- EPDM seal material for resistance to cracking and degradation at high temperatures
Top product applications:
- Drainage systems
- Plumbing systems
- Water treatment plants
ASAHI 1210005 is a 1/2 in. inline ball check valve for flow control in water and compatible chemical lines. It uses a ball check mechanism configured for one-direction flow and reverse-flow reduction, with a 1 psi cracking pressure. The valve has a PVC body with EPDM seat and seal materials for applications requiring these material specifications, and it can be mounted in horizontal or vertical orientations.
Key Features:
- Valve type: Ball check valve with single-flow inline ball design.
- Size: 1/2 in. nominal valve size with 1/2 in. connections on both sides.
- Connection style: Socket x Socket with female union socket connections on side 1 and side 2.
- Body material: PVC.
- Seal and seat material: EPDM.
- Pressure rating: 150 psi maximum operating pressure
- 150 psi at 120 degrees F maximum water pressure.
- Temperature range: 30 degrees F minimum to 120 degrees F maximum operating temperature.
- Flow characteristics: Cv 6.5
- non-full-flow design.
- Mounting: Horizontal or vertical orientation.
- Standards and certifications: ASTM D1784 Cell Class 12454A
- NSF 61.
- Overall length: 3.43 in.
- overall height: 1-57/64 in.
- width: 1-57/64 in.
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 2.20
- Package Weight: 0.37
