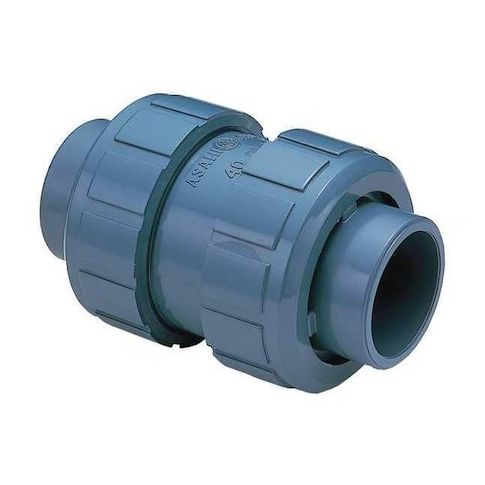

Ball Check Valve, Inline, 1 in, Union Socket x Union Socket, PVC Body, EPDM Seat/Seal MPN:1210010
The 1in Socket PVC Ball Check Valve from Asahi is a reliable and efficient solution for various applications. Designed for inline use, this valve features a single flow design and a cracking pressure of 1 psi, making it ideal for use in water supply systems. With a maximum temperature of 120°F and a maximum water pressure of 150 psi, it can withstand the demands of commercial and industrial environments. Suitable for horizontal or vertical mounting, this valve provides a secure seal with EPDM material and is suitable for use in a range of industries, including water treatment, HVAC, and plumbing.
Top product features:
- Single flow design allows for unidirectional fluid flow
- Inline ball mechanism provides a compact design
- EPDM seal material provides resistance to corrosion and wear
Top product applications:
- Pump discharge lines to prevent backflow into the pump
- Cooling systems to prevent water from flowing back into the system when the pump is turned off
- Water supply lines to prevent backflow into the distribution system when the water is turned off
ASAHI 1210010 is a 1 in. inline ball check valve with a PVC body and EPDM seat and seal materials. It uses a free-moving ball check mechanism for one-way flow control for general-purpose chemical and water service within stated material and rating specifications. Mounting orientation: horizontal or vertical. The valve is rated for operating temperatures from 30 Degrees F to 120 Degrees F.
Key Features:
- 1 in. nominal valve size with 1 in. female union socket connections on both sides
- Inline ball check mechanism with single-flow design for one-way flow control
- PVC body construction
- EPDM seat and seal materials
- Connection type: Socket x Socket
- Cracking pressure: 1 psi
- Maximum operating pressure: 150 psi
- Maximum water pressure: 150 psi at 120 Degrees F
- Operating temperature range: 30 Degrees F to 120 Degrees F
- Mounting orientation: Horizontal or Vertical
- mounting position: Any
- Cv: 25
- Overall length: 4.37 in.
- overall height: 2 49/64 in.
- width: 2.76 in.
- Standards and certifications: ASTM D1784 Cell Class 12454A, NSF 61
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.80
- Package Height: 3.00
- Package Weight: 0.80
