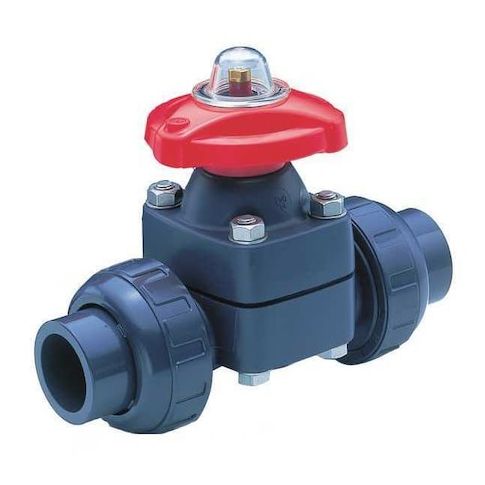

Diaphragm Valve, 1-1/2" Pipe Size", PVDF MPN:1542015
Diaphragm Valve, 1-1/2" Pipe Size", PVDF
This manual diaphragm valve from Asahi is designed for reliable operation in a variety of applications, including chemical processing, water treatment, and pharmaceutical manufacturing. The valve features a PTFE diaphragm and seal for chemical resistance, and a PVDF body for durability. With a coefficient of volume (Cv) of 26 and a maximum operating pressure of 150 psi, this valve is suitable for demanding applications. Its compact design and easy operation make it an ideal choice for use in tight spaces and high-traffic areas, ensuring efficient and safe control of fluid flow.
Top product features:
- Manual operation allows for precise control over valve opening and closing.
- The diaphragm is made of PTFE, providing chemical resistance and durability.
- The valve has a 2-way design, allowing for both flow control and shutdown capabilities.
Top product applications:
- Water Treatment Plants
- Chemical Processing Plants
- Food and Beverage Industry
Manual Diaphragm Valve, Coefficient of Volume (Cv) 26, Nominal Valve Size 1 1/2 in, Connection Type - Side 1 IPS, Connection Type - Side 2 Socket, Standards IPS, Diaphragm Material PTFE, Seal Material PTFE, Maximum Pressure - Operating 150 psi, Operating Temperature - Maximum 210 Degrees F, Diaphragm Valve Type 2-Way, Body Material PVDF, Inlet Connection Gender Not Applicable, Overall Length 10.28 in, Operating Temperature - Minimum -40 Degrees F, ANSI Flange Class Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 21, 2026 3:03am UTC
Category: Pipes, Valves and Fittings
