Diaphragm Valve, 5-29/32" L, PVDF MPN:1544005
Diaphragm Valve, 5-29/32" L, PVDF

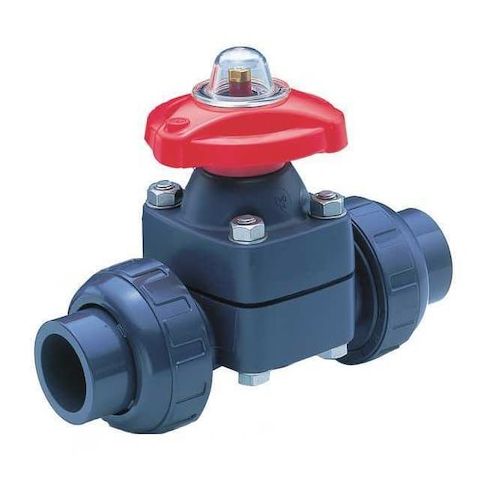

The Asahi Diaphragm Valve is a reliable and versatile solution for a wide range of applications. This manual valve features a PTFE diaphragm and seal for optimal performance in harsh environments, and is constructed with PVDF body material for durability and resistance to corrosion. With a coefficient of volume (Cv) of 4.8 and a maximum operating pressure of 150 psi, this valve is suitable for use in various industries, including chemical processing, pharmaceutical, and food and beverage. Its compact design and ease of operation make it an ideal choice for applications where precision and control are critical.
Top product features:
- It has a manual operation mechanism.
- It is a 2-way valve.
- It is made with a PTFE diaphragm and seal.
Top product applications:
- Chemical processing plants for handling corrosive fluids due to the valve's PVDF and PTFE materials
- Water treatment facilities for controlling flow rates in pipes
- Pharmaceutical manufacturing plants for regulating the flow of process fluids
Manual Diaphragm Valve, Coefficient of Volume (Cv) 4.8, Nominal Valve Size 1/2 in, Connection Type - Side 1 Butt Weld, Diaphragm Material PTFE, Seal Material PTFE, Maximum Pressure - Operating 150 psi, Operating Temperature - Maximum 210 Degrees F, Diaphragm Valve Type 2-Way, Body Material PVDF, Inlet Connection Gender Not Applicable, Overall Length 5.91 in, Operating Temperature - Minimum -40 Degrees F, ANSI Flange Class Not Applicable, Number of Flange Bolt Holes Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 6, 2026 1:24pm UTC
Category: Pipes, Valves and Fittings
