Diaphragm Valve, 10-7/8" L, PVDF MPN:1544015
Diaphragm Valve, 10-7/8" L, PVDF

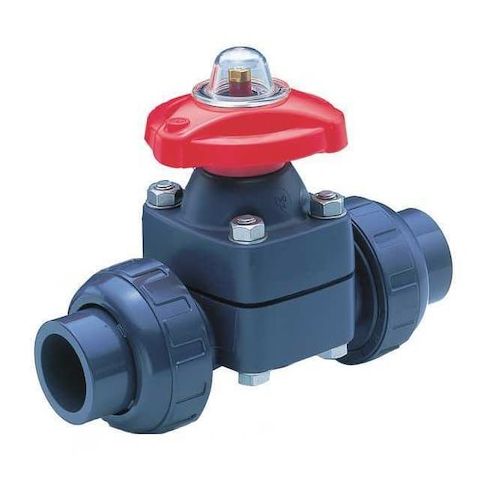

The Asahi Diaphragm Valve is a reliable and versatile solution for a wide range of industrial applications. Its 2-way design allows for precise control of fluid flow, making it ideal for use in chemical processing, water treatment, and pharmaceutical manufacturing. The valve's PVDF body and PTFE diaphragm ensure excellent chemical resistance and durability, while its manual operation provides easy control and maintenance. With a Cv of 26 and operating temperatures ranging from -40°F to 210°F, this valve is suitable for demanding applications where precise control and reliability are critical. Its compact design and easy installation make it a great choice for a variety of industries.
Top product features:
- The valve has a 2-way diaphragm design.
- The valve is made with a PTFE diaphragm and seal for chemical resistance.
- The valve has a manual operation for user control.
Top product applications:
- Water treatment plants
- Chemical processing facilities
- Pharmaceutical manufacturing plants
Manual Diaphragm Valve, Coefficient of Volume (Cv) 26, Nominal Valve Size 1 1/2 in, Connection Type - Side 1 Butt Weld, Diaphragm Material PTFE, Seal Material PTFE, Maximum Pressure - Operating 150 psi, Operating Temperature - Maximum 210 Degrees F, Diaphragm Valve Type 2-Way, Body Material PVDF, Inlet Connection Gender Not Applicable, Overall Length 10.88 in, Operating Temperature - Minimum -40 Degrees F, ANSI Flange Class Not Applicable, Number of Flange Bolt Holes Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on March 10, 2026 1:44pm UTC
Category: Pipes, Valves and Fittings
