Flange Gasket, 9-51/64" Inside Dia., Black MPN:3113100
Flange Gasket, 9-51/64" Inside Dia., Black

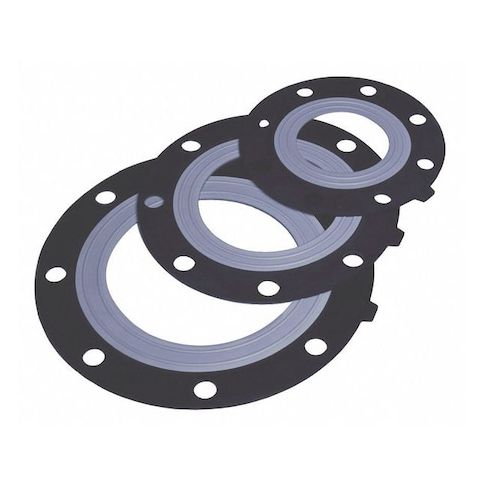

The Asahi Flange Gasket is a high-quality, full-face gasket designed for use with 10-inch pipes and ANSI Class 150 flanges. Made from durable EPDM material, this gasket offers excellent resistance to temperature extremes, from -40°F to 195°F, and is ideal for applications where a strong seal is critical. Its compact design and smooth surface ensure easy installation and minimal leakage. Suitable for use in various industries, including chemical processing, water treatment, and HVAC, this gasket provides a reliable and long-lasting solution for maintaining pipe connections and ensuring system integrity.
Top product features:
- Full Face design allows for a tight seal on the entire flange surface
- EPDM gasket material provides resistance to chemicals and extreme temperatures
- 12 bolt holes enable secure fastening to the flange
Top product applications:
- Flange gaskets are used in water treatment plants to seal connections between pipes and valves.
- They are used in chemical processing plants to prevent leaks and contamination.
- They are used in oil refineries to seal flanges on pipes and vessels.
Full Face Flange Gasket, Gasket Material EPDM, Insert Material EPDM, For Pipe Size 10 in, For Flange ANSI Class 150, Binder Material None, Color Black, Inside Diameter 10 3/4 in, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 195 Degrees F, Outside Diameter 15 15/16 in, Thickness 5/64 in, Number of Bolt Holes 12, Bolt Hole Diameter 1 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Shore 65 to 70 A
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 16.00
- Package Height: 0.30
- Package Weight: 0.54
Product info last updated on February 6, 2026 1:38pm UTC
Category: Sealing and Gasketing
