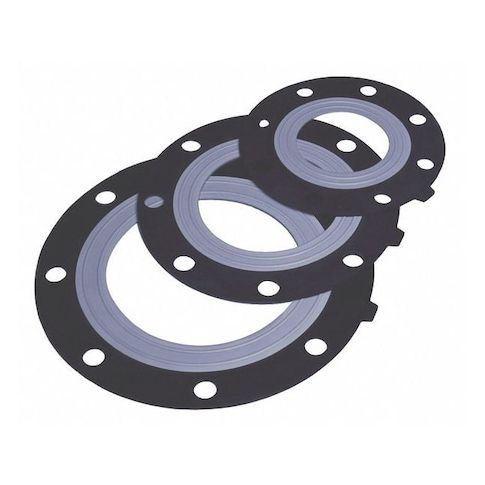

Flange Gasket, 5" Inside Dia., Black MPN:3114050
Flange Gasket, 5" Inside Dia., Black
The Asahi Flange Gasket is a high-quality, full-face gasket designed for use on 5-inch flanges in ANSI Class 150 applications. Made with EPDM gasket material and PTFE insert, this gasket offers excellent sealing performance and resistance to chemicals and extreme temperatures. Its black color and smooth surface ensure easy installation and minimal maintenance. Suitable for use in various industries, including chemical processing, oil and gas, and pharmaceuticals, this gasket provides reliable sealing in high-pressure and high-temperature applications, extending equipment lifespan and reducing downtime. Its compact size and easy installation make it an ideal choice for new installations and replacements.
Top product features:
- Seals flanges to prevent leaks and ensure a tight seal in applications up to 250 Degrees F.
- Has a full-face design to provide even pressure distribution and prevent gasket failure.
- Made with EPDM gasket material and PTFE insert for chemical resistance and durability.
Top product applications:
- Pipe flanging for water treatment plants
- Chemical processing equipment
- Industrial boiler systems
Full Face Flange Gasket, Gasket Material EPDM, Insert Material PTFE, For Pipe Size 5 in, For Flange ANSI Class 150, Binder Material None, Color Black, Inside Diameter 5 9/16 in, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 250 Degrees F, Outside Diameter 9 15/16 in, Thickness 5/64 in, Number of Bolt Holes 8, Bolt Hole Diameter 7/8 in, Product Type Full-Face Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Shore 95 to 100 A
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on January 29, 2026 10:40pm UTC
Category: Sealing and Gasketing
