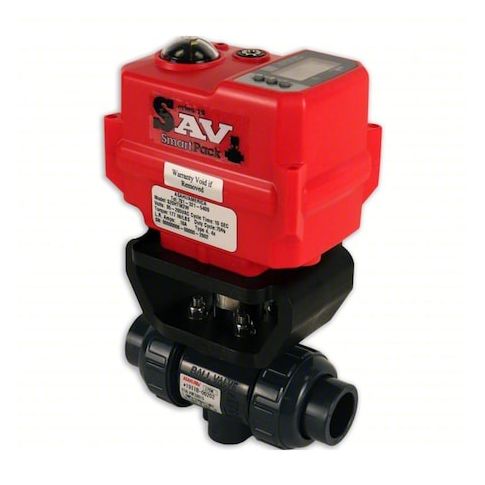

Electrically Actuated Two-Way Ball Valve MPN:160540007
Electrically Actuated Two-Way Ball Valve
The Asahi Electrically Actuated Two-Way Ball Valve is a versatile and reliable solution for various industrial applications. This valve is designed to control the flow of fluids in a wide range of industries, including water treatment, chemical processing, and pharmaceutical manufacturing. Its PVC ball material and PTFE seat ensure smooth and consistent operation, while its FKM seal provides long-lasting durability. The valve's manual override, position indicator, and heater features make it easy to operate and maintain. With a fast actuation time of 10 seconds and a maximum pressure of 170 psi, this valve is perfect for applications where quick and precise control is required.
Top product features:
- Electrically actuated operation allows for remote control of the valve.
- The valve can be positioned to allow flow in two directions.
- The actuator features a manual override, allowing for direct control of the valve in case of an electrical failure.
Top product applications:
- Pump control in water treatment plants
- Control of chemical dosing systems in industrial processes
- Regulation of flow in laboratory water systems
Electrically Actuated Two-Way Ball Valve, Ball Material PVC, Nominal Valve Size 3/4 in, Maximum Pressure - Operating 170 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, Seal Material FKM, Voltage 95 to 265V AC, Fail Safe Position Fail Last, Actuator Cycle Time - 90 Degrees 10 sec, Valve Construction One-Piece, Actuator Features Manual Override, Position Indicator, Heater, Connection Gender - Side 1 Male
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 8.50
- Package Height: 6.00
- Package Weight: 3.10
Product info last updated on March 28, 2026 10:01pm UTC
Category: HVACR and Appliance Controls
