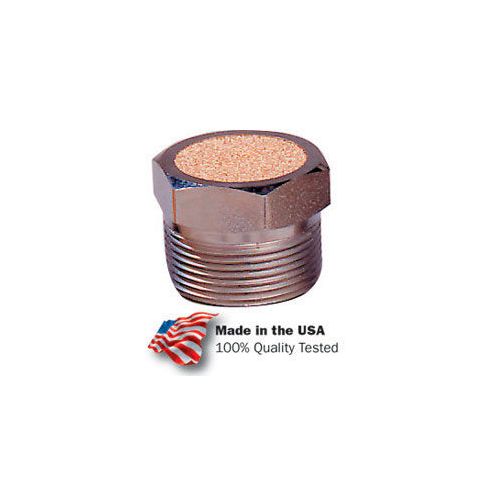

Arrow ASP-4BV Pneumatic Breather Vent Sintered Bronze 40 Micron 1/2 NPT 150 PSI ASP-4BV - Pkg Qty 10
Arrow ASP-4BV Pneumatic Breather Vent Sintered Bronze 40 Micron 1/2 NPT 150 PSI
Protect your pneumatic systems with the Arrow ASP-4BV Sintered Bronze Breather Vent. This reliable vent has a wide range of applications, including vacuum relief and pressure equalization on gearboxes, oil tanks, and reservoirs. Prevent dirt and foreign particles from entering ports open to the atmosphere on single-acting cylinders. The 40-micron filter element provides effective filtration, while the nickel-plated steel insert and standard pipe thread fittings ensure easy assembly and removal for cleaning. With a maximum operating temperature range of 35°F to 300°F and a 150 PSI rating, this breather vent is designed to withstand demanding environments and provide long-lasting performance.
Top product features:
- Sintered bronze construction provides a durable and long-lasting filter element
- Filter element rated for 40 micron filtration to prevent dirt and foreign particles from entering ports
- Units have a nickel plated steel insert for added strength and corrosion resistance
Top product applications:
- Vacuum relief on gear boxes
- Pressure equalization on oil tanks
- Preventing dirt and foreign particles from entering ports open to the atmosphere on single acting cylinders
Arrow asp-4bv pneumatic breather vent sintered bronze 40 micron 1/2" npt 150 psi arrow pneumatics sintered bronze breather vent - these breather vents have many applications including vacuum relief or pressure equalization on gear boxes oil tanks or reservoirs. Common uses can be found on single acting cylinders to prevent dirt and foreign particles from entering ports open to the atmosphere. Units have a nickel plated steel insert. All have standard pipe thread fittings for quick assembly and removal for cleaning. The filter element within the standard breather vent is rated for 40 micron filtration and can also be obtained with 20 or 90 micron filtration on special order. Features & benefits ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" 1/2" npt sintered bronze 40 micron breather vent 150 psi max operating temperature range 35°f 300°f
Additional Information
- UNSPSC: 40142512
- Brand: Arrow Pneumatics Inc
- Color: Gold
- Package Quantity: 10
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Weight: 1.50
Product info last updated on August 16, 2025 7:30am UTC
Category: Compressed Air Treatment
