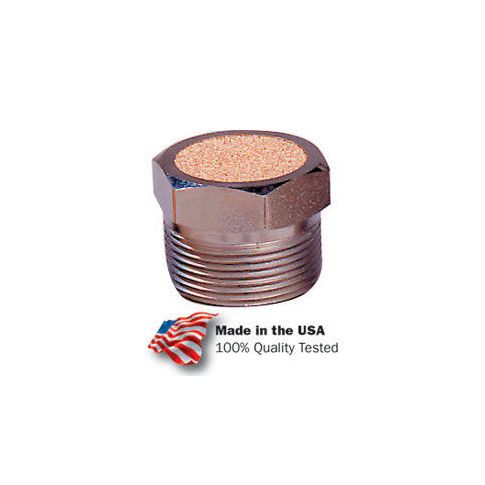

Arrow ASP2BV Pneumatic Breather Vent Sintered Bronze 40 Micron 1/4 NPT 150 PSI ASP2BV - Pkg Qty 10
Arrow ASP2BV Pneumatic Breather Vent Sintered Bronze 40 Micron 1/4 NPT 150 PSI
These sintered bronze breather vents are designed for various applications, including vacuum relief and pressure equalization on gearboxes, oil tanks, and reservoirs. They can also be used on single-acting cylinders to prevent dirt and foreign particles from entering ports open to the atmosphere. With a 40-micron filtration rating and a nickel-plated steel insert, these vents provide reliable protection against contamination. They are easy to assemble and remove for cleaning, and are suitable for use in temperatures ranging from 35°F to 300°F. They are a cost-effective solution for maintaining the integrity of pneumatic systems.
Top product features:
- Sintered bronze construction provides a durable and long-lasting filter element
- Filter element rated for 40 micron filtration to prevent dirt and foreign particles from entering ports
- Nickel plated steel insert allows for quick assembly and removal for cleaning
Top product applications:
- Vacuum relief on gear boxes
- Pressure equalization on oil tanks or reservoirs
- Prevent dirt and foreign particles from entering ports open to the atmosphere on single acting cylinders
Arrow asp2bv pneumatic breather vent sintered bronze 40 micron 1/4" npt 150 psi arrow pneumatics sintered bronze breather vent - these breather vents have many applications including vacuum relief or pressure equalization on gear boxes oil tanks or reservoirs. Common uses can be found on single acting cylinders to prevent dirt and foreign particles from entering ports open to the atmosphere. Units have a nickel plated steel insert. All have standard pipe thread fittings for quick assembly and removal for cleaning. The filter element within the standard breather vent is rated for 40 micron filtration and can also be obtained with 20 or 90 micron filtration on special order. Features & benefits ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" 1/4" npt sintered bronze 40 micron breather vent 150 psi max operating temperature range 35°f 300°f
Additional Information
- UNSPSC: 40142512
- Brand: Arrow Pneumatics Inc
- Color: Gold
- Package Quantity: 10
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 0.62
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.02
Product info last updated on August 16, 2025 7:30am UTC
Category: Compressed Air Treatment
