Arrow ASP1BV Pneumatic Breather Vent Sintered Bronze 40 Micron 1/8 NPT 150 PSI ASP1BV - Pkg Qty 10

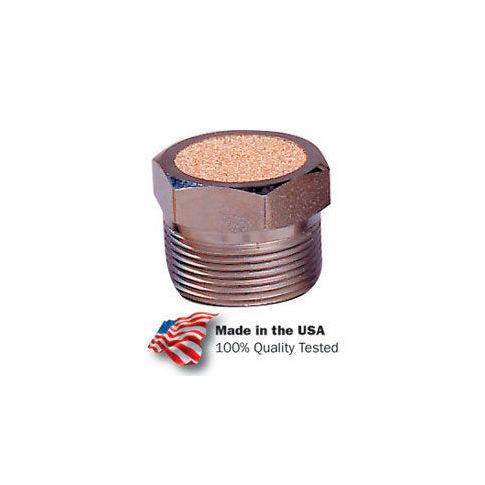

Arrow ASP1BV Pneumatic Breather Vent Sintered Bronze 40 Micron 1/8 NPT 150 PSI
Protect your pneumatic systems with the Arrow ASP1BV Sintered Bronze Breather Vent. This 40-micron filter prevents dirt and foreign particles from entering ports open to the atmosphere, ideal for single-acting cylinders, gearboxes, oil tanks, and reservoirs. The nickel-plated steel insert and standard pipe thread fittings ensure quick assembly and removal for cleaning. With a maximum operating temperature range of 35°F to 300°F and a 150 PSI rating, this breather vent is reliable and versatile. Its compact size and lightweight design make it easy to integrate into your system, providing a cost-effective solution for maintaining optimal pneumatic performance.
Top product features:
- The product has a 40 micron filtration rating.
- The breather vent is designed to provide vacuum relief and pressure equalization on gear boxes, oil tanks, or reservoirs.
- The unit has a nickel-plated steel insert for durability and a standard pipe thread fitting for quick assembly and removal.
Top product applications:
- Vacuum relief on gear boxes
- Pressure equalization on oil tanks or reservoirs
- Preventing dirt and foreign particles from entering ports open to the atmosphere on single acting cylinders
Arrow asp1bv pneumatic breather vent sintered bronze 40 micron 1/8" npt 150 psi arrow pneumatics sintered bronze breather vent - these breather vents have many applications including vacuum relief or pressure equalization on gear boxes oil tanks or reservoirs. Common uses can be found on single acting cylinders to prevent dirt and foreign particles from entering ports open to the atmosphere. Units have a nickel plated steel insert. All have standard pipe thread fittings for quick assembly and removal for cleaning. The filter element within the standard breather vent is rated for 40 micron filtration and can also be obtained with 20 or 90 micron filtration on special order. Features & benefits ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" 1/8" npt sintered bronze 40 micron breather vent 150 psi max operating temperature range 35°f 300°f
Additional Information
- UNSPSC: 40142512
- Brand: Arrow Pneumatics Inc
- Color: Gold
- Package Quantity: 10
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 0.70
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.10
Product info last updated on May 19, 2025 2:54am UTC
Category: Compressed Air Treatment
