Arrow 3/8" Modular FRL W/O End Ports D33353 Gauge Poly Bowl Manual & Arrow Fog Lubricator D33353
Arrow 3/8" Modular FRL W/O End Ports D33353 Gauge Poly Bowl Manual & Arrow Fog Lubricator

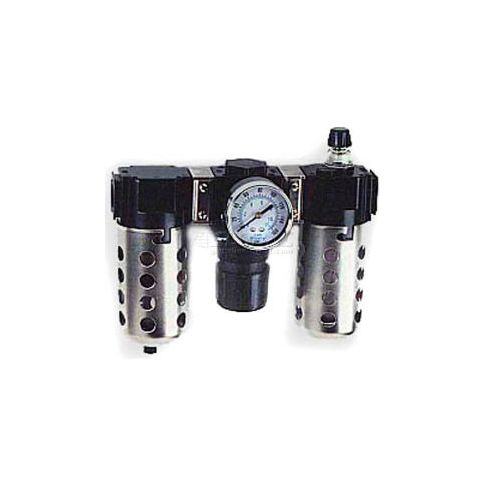

The Arrow 3/8in Modular FRL is a high-performance air preparation system designed for flexibility and ease of use. Its compact, lightweight design and interlocking feature enable simple installation in any location, with the ability to add or remove units without disturbing existing piping. The system includes a filter with manual drain, air control regulator with gauge, and fog lubricator, all with 5 oz. poly bowls and guards. Suitable for a wide range of applications, including industrial and manufacturing settings, this modular FRL system offers precise air control and protection against dirt, debris, and moisture.
Top product features:
- Insert interlocking feature allows simple installation in any location.
- Regulator mounting can be either up or down.
- Filter and lubricator have 5 oz. Poly bowls with guards.
Top product applications:
- Industrial Settings: The modular design and flexibility of the Arrow 3/8in Modular FRL make it suitable for various industrial applications, such as manufacturing, assembly, and testing, where high-performance air preparation is required.
- Automotive and Garage Shops: The compact and lightweight design of the Arrow 3/8in Modular FRL makes it ideal for use in automotive and garage shops, where space is limited and flexibility is crucial.
- Medical and Laboratory Settings: The high-performance air preparation capabilities of the Arrow 3/8in Modular FRL make it suitable for use in medical and laboratory settings, where precise and reliable air supply is critical.
Arrow pneumatics modular frl's offer high performance and flexability in a compact lightweight design. A screw driver is the only thing needed to connect or disconnect units. Insert interlocking feature allows simple installation in any location. Installation or removal from one plane without disturbing existing piping. Regulator mounting can be either up or down. Unique design allows side top indivdual and custom mounting. Regulator and lubricator adjustments are made through three position tamper resistant knobs. Engineered to permit use with standard size pipe nipples. Special optional diverter blocks supply air to secondary locations. Unlimited adaptation to air preparation systems. Features & benefits ul style"margin-top0px; padding-top5px; padding-bottom 5px;" 3/8" filter/regulator/lubricator combination includes filter with manual drain for removal of particulate dirt debris pipe scale rust and water to 40 micron air control regulator with gauge and arrow pneumatics fog lubricator filter and lubricator have 5 oz. Poly bowls with guards 150 psi max 5-125 psi operating range 40°f-150°f temp.
Additional Information
- UNSPSC: 27131603
- Brand: Arrow Pneumatics Inc
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: MI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 13.00
- Package Width: 9.50
- Package Height: 4.25
- Package Weight: 4.20
Product info last updated on August 16, 2025 7:30am UTC
Category: Compressed Air Treatment
