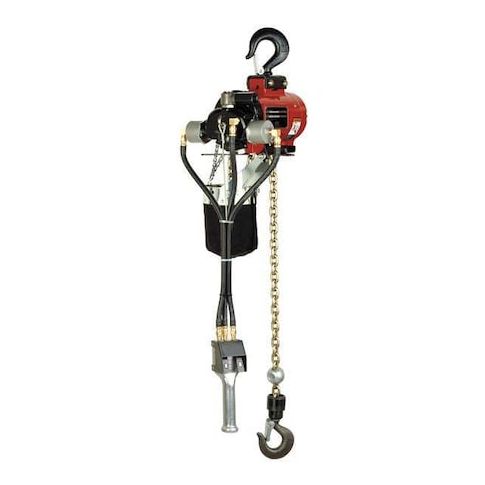

Air Chain Hoist, 7776E Series, 2, 200 lb Capacity, Pendant Control, 10 ft Lift, Hook Mounted MPN:7776E-2C10-C6S
The ARO 7776E-2C10-C6S air chain hoist is a reliable and efficient solution for industrial lifting applications. Designed for use in demanding environments, this hook-mounted hoist offers a 2,200 lb capacity and 10 ft lift, providing reach for a range of overhead lifting tasks. With variable lift speeds up to 21 fpm and a pendant control, operators can handle loads with precision and ease. Suitable for heavy-duty applications such as manufacturing, warehousing, and construction, this hoist meets ANSI B30.16 standards and is built with a durable powder-coated finish and adjustable band brake for reliable load control.
Top product features:
- 2,200 lb load capacity for lifting and positioning heavy loads in industrial applications.
- Hook mounted design allows installation without a trolley.
- Variable lift speed from 0 to 21 fpm for controlled raising and lowering.
Top product applications:
- Construction and manufacturing facilities for lifting and positioning heavy loads
- Industrial environments requiring dependable overhead lifting performance
- Material handling and warehousing operations for controlled raising and lowering of heavy loads
The ARO 7776E-2C10-C6S is a hook mounted air chain hoist designed for lifting applications requiring up to 2,200 lb capacity with 10 ft of lift. This pneumatic hoist operates at 90 psi, delivers variable lift speeds up to 21 fpm, and is controlled by a pendant for convenient load handling. Built with an adjustable band brake, powder coated red finish, and a steel chain container, it is suited for industrial environments where dependable overhead lifting performance is needed.
Key Features:
- - 2,200 lb load capacity for lifting and positioning heavy loads in industrial applications.
- - Hook mounted design allows installation without a trolley.
- - 10 ft hoist lift provides reach for a range of overhead lifting tasks.
- - Variable lift speed from 0 to 21 fpm for controlled raising and lowering.
- - Operates at 90 psi with air consumption of 65 to 70 scfm.
- - Pendant control supports convenient and responsive hoist operation.
- - Adjustable band brake helps provide reliable load control during use.
- - 1/2 in NPT air inlet connection for pneumatic setup.
- - Minimum between hooks: 21 11/16 in.
- - Reeving: 1.
- - Includes a steel chain container for chain management.
- - Powder coated red finish helps protect the hoist in demanding work environments.
- - Housing dimensions: 10 19/32 in L x 10 in W.
- - Meets ANSI B30.16 standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 16.60
- Package Height: 15.50
- Package Weight: 65.00
