Diaphragm Pump, 3/4in NPT, PTFE, 195 gpm MPN:SD20S-CSS-STK-B00
Diaphragm Pump, 3/4in NPT, PTFE, 195 gpm

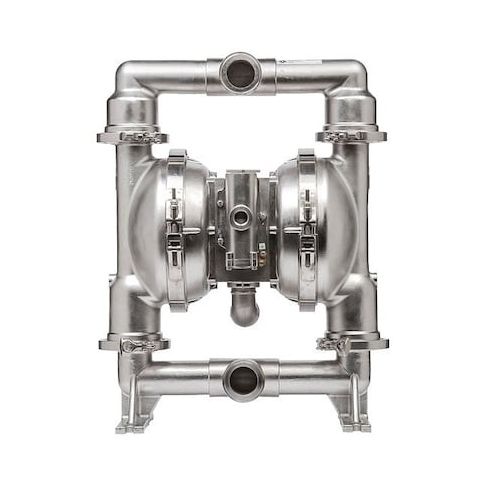

The ARO Diaphragm Pump is a high-performance solution for demanding fluid handling applications. With a maximum flow rate of 195 gpm and 18.25 ft of head, this pump is ideal for use in chemical processing, wastewater treatment, and other industries where high-pressure and high-flow rates are required. Its PTFE diaphragm and 316 stainless steel check seat ensure durability and resistance to corrosion, while its compact design and single-port manifold connection make it easy to integrate into existing systems. Suitable for a range of applications, including chemical transfer, water treatment, and pharmaceutical processing, this pump delivers reliable and efficient performance.
Top product features:
- The product has a diaphragm made of PTFE, which provides resistance to corrosion and chemical compatibility.
- The pump has a maximum flow rate of 195 gpm, allowing for efficient transfer of media.
- The product features a 316 stainless steel check seat, which ensures reliable sealing and prevents leakage.
Top product applications:
- Chemical Processing
- Sanitary and Pharmaceutical Processes
- Food and Beverage Processing
Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) 18.25 ft, Flow Rate (Maximum) 195 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 2 in, Media Intake Connection Type Tri-Clamp, Media Intake Location Bottom
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.54
- Package Width: 27.56
- Package Height: 27.17
- Package Weight: 190.00
Product info last updated on February 17, 2026 8:32pm UTC
Category: Positive Displacement Pumps
