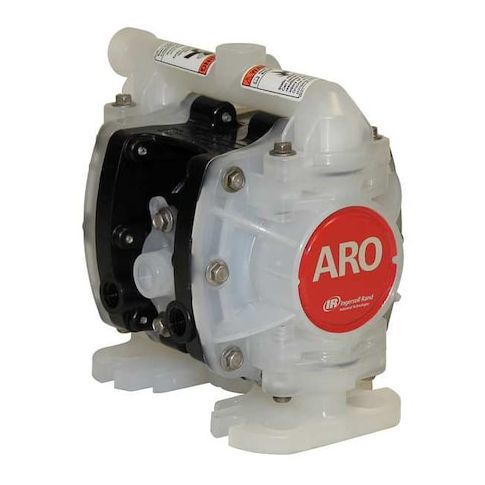

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 5.3 GPM MPN:PD01P-HPS-PTT-A
Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 5.3 GPM
The ARO Double Diaphragm Pump is a reliable and efficient solution for various industrial applications. This air-operated pump features a polypropylene body and PTFE diaphragms for durability and chemical resistance. With a maximum flow rate of 5.4 gpm and 125 ft of head, it can handle demanding tasks with ease. Suitable for applications such as chemical transfer, wastewater treatment, and paint circulation, this pump offers a cost-effective and low-maintenance alternative to traditional pumps. Its compact design and easy operation make it an ideal choice for a wide range of industries, including manufacturing, pharmaceutical, and food processing.
Top product features:
- Air-operated design allows for easy integration with existing compressed air systems.
- PTFE diaphragms provide chemical resistance and durability.
- Maximum flow rate of 5.4 gpm enables efficient transfer of liquids.
Top product applications:
- Chemical Transfer: The Double Diaphragm Pump is suitable for transferring chemicals due to its PTFE diaphragm and polypropylene check seat, which can withstand corrosive substances.
- Water Treatment: The pump's ability to handle high pressures (up to 125 ft of head) makes it suitable for applications such as water treatment, where high pressure is often required to transfer water.
- Food and Beverage: The pump's PTFE diaphragm and polypropylene check seat make it suitable for use in food and beverage applications, where contamination and corrosion resistance are critical.
Double Diaphragm Pump, Air Consumption (Maximum) 5 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 125 ft, Flow Rate (Maximum) 5.4 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/4 in, Media Discharge Connection Type NPTF, Media Discharge Location Side, Media Intake Connection Size 1/4 in, Media Intake Connection Type NPT, Media Intake Location Side
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 10.60
- Package Height: 5.20
- Package Weight: 4.15
Product info last updated on March 10, 2026 9:21am UTC
Category: Positive Displacement Pumps
