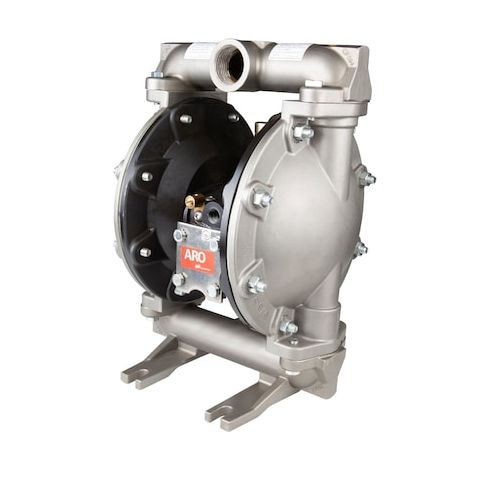

Diaphragm Pump, 1/4in NPT, PTFE, 35 gpm MPN:666101-344-C
Diaphragm Pump, 1/4in NPT, PTFE, 35 gpm
The ARO Diaphragm Pump is a reliable and efficient solution for various industrial and commercial applications. With a maximum flow rate of 35 gpm and a self-priming design, this pump is ideal for transferring fluids in tight spaces and high-pressure environments. The PTFE and Santoprene diaphragm materials ensure chemical resistance and durability, while the polypropylene check seat provides a secure seal. Suitable for applications such as chemical processing, pharmaceutical manufacturing, and food and beverage production, this pump offers a cost-effective and low-maintenance solution for a wide range of fluid transfer needs.
Top product features:
- Self-priming design allows for easy startup without the need for manual priming
- Maximum flow rate of 35 gpm enables efficient transfer of media
- PTFE and Santoprene diaphragm materials provide chemical resistance and durability
Top product applications:
- Chemical Transfer: The ARO Diaphragm Pump is suitable for transferring chemicals due to its PTFE and Santoprene materials, which are resistant to corrosion and chemical damage.
- Water Treatment: The pump's ability to handle media intake and discharge connections of 1 in NPTF and its maximum flow rate of 35 gpm make it suitable for water treatment applications.
- Pharmaceutical Processing: The pump's self-priming feature and ability to operate at a maximum pressure of 120 psi make it a good fit for pharmaceutical processing applications where precise fluid handling is required.
Diaphragm Pump, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Santoprene, Feet of Head (Maximum) 20 ft, Flow Rate (Maximum) 35 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPTF, Media Intake Connection Size 1 in, Media Intake Connection Type NPTF, Operating Pressure (Maximum) 120 psi, Priming Self-Priming, Pump Assembly Type Bolt
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.17
- Package Width: 9.65
- Package Height: 9.06
- Package Weight: 36.45
Product info last updated on February 9, 2026 4:02pm UTC
Category: Positive Displacement Pumps
