Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, Santoprene, 54 gpm GPM 225 Degrees F MPN:SD10R-CSS-STT-B00
Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, Santoprene, 54 gpm GPM 225 Degrees F

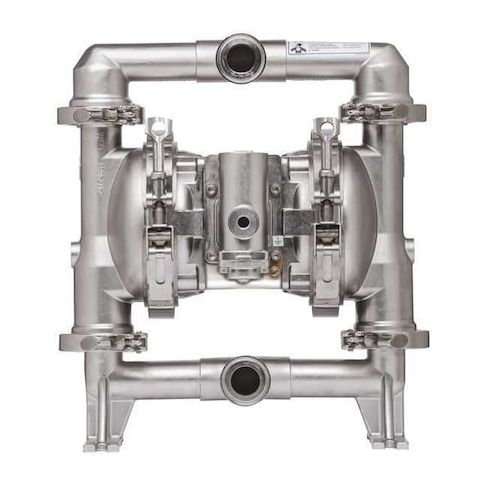

The ARO Double Diaphragm Pump is a reliable and efficient solution for various industrial applications. This air-operated pump features a stainless steel construction and PTFE, Santoprene diaphragms, making it suitable for handling corrosive and abrasive fluids. With a maximum flow rate of 54 gpm and a head of 235 ft, it can handle demanding applications. Its compact design and single-port manifold connection make it easy to integrate into existing systems. The pump is ideal for use in chemical processing, wastewater treatment, and food and beverage industries, offering benefits such as high uptime, low maintenance, and increased productivity.
Top product features:
- Air Operated Design
- PTFE and Santoprene Diaphragm Materials
- Maximum Flow Rate of 54 gpm
Top product applications:
- Chemical Transfer: The ARO Double Diaphragm Pump is suitable for transferring chemicals and other corrosive fluids due to its PTFE and Santoprene materials, which provide excellent resistance to chemical damage.
- Food and Beverage Processing: The pump's 316 stainless steel check seat and PTFE and Santoprene diaphragms make it an ideal choice for applications in the food and beverage industry, where cleanliness and sanitation are crucial.
- Pharmaceutical Manufacturing: The pump's ability to handle high-temperature fluids up to 225°F and its use of PTFE and Santoprene materials make it a suitable choice for applications in pharmaceutical manufacturing, where precise temperature control and chemical resistance are essential.
Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Santoprene, Feet of Head (Maximum) 235 ft, Flow Rate (Maximum) 54 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Tri-Clamp
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 20.00
- Package Height: 20.00
- Package Weight: 50.00
Product info last updated on February 24, 2026 7:02am UTC
Category: Positive Displacement Pumps
