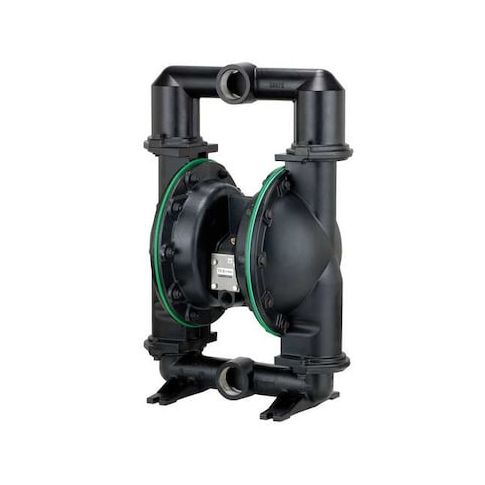

Diaphragm Pump, 3/4in NPT, PTFE, 172 gpm MPN:666250-144-C
Diaphragm Pump, 3/4in NPT, PTFE, 172 gpm
The ARO DiaphPmp is a high-performance diaphragm pump designed for demanding applications. With a maximum flow rate of 172 gpm and operating pressure of 120 psi, it efficiently transfers fluids in a variety of industries. The pump's PTFE and TPV components ensure chemical resistance and durability, while its aluminum housing provides a robust and corrosion-resistant design. Suitable for use in food processing, pharmaceutical, and chemical applications, the DiaphPmp offers reliable and consistent performance. Its compact size and easy maintenance make it an ideal choice for industrial settings where precision and efficiency are crucial.
Top product features:
- Diaphragm Pump has a maximum flow rate of 172 gpm.
- Has a maximum operating pressure of 120 psi.
- Has a PTFE diaphragm and valve material for chemical resistance.
Top product applications:
- Chemical Transfer: The ARO DiaphPmp pump is suitable for transferring chemicals due to its PTFE and TPV components, which provide chemical resistance and durability.
- Food and Beverage Processing: The pump's PTFE and aluminum components make it a good fit for food and beverage processing applications, where sanitation and chemical resistance are crucial.
- Water Treatment: The pump's ability to handle high flow rates (172 gpm) and its resistance to corrosion make it suitable for water treatment applications, such as pumping water from one tank to another.
Diaphragm Pump, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material Aluminum, Diaphragm Material PTFE, Flow Rate (Maximum) 172 gpm, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPT, Media Intake Connection Size 2 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Operating Pressure (Maximum) 120 psi, Solid Diameter (Maximum) 0.25 in, Valve Material PTFE, Wetted Housing Material Aluminum, Standards ATEX Certified
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.95
- Package Width: 17.32
- Package Height: 34.25
- Package Weight: 106.70
Product info last updated on February 24, 2026 8:09am UTC
Category: Positive Displacement Pumps
