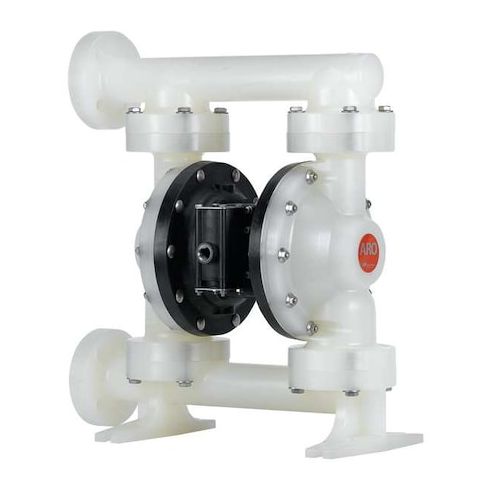

Double Diaphragm Pump, Air Operated, Polypropylene, PTFE, 126 gpm, 1 1/2 in Flange MPN:PD15P-FPS-PTT
The ARO Double Diaphragm Pump is a reliable and efficient solution for various industrial applications. This air-operated pump is designed for high-flow rates, reaching up to 126 gpm, and can handle media discharge at side locations. Its PTFE diaphragm and polypropylene check seat ensure minimal wear and tear, reducing maintenance needs. Suitable for use in wastewater treatment, chemical processing, and other industries where high flow rates are required, this pump excels in applications involving high-viscosity fluids and aggressive chemicals. Its compact design and easy maintenance make it an ideal choice for a wide range of industrial applications.
Top product features:
- Air Operated Design
- PTFE Diaphragm Material
- Maximum Flow Rate of 123 GPM
Top product applications:
- Chemical Transfer
- Water Treatment
- Food and Beverage Processing
The ARO PD15P-FPS-PTT is an air operated double diaphragm pump designed for reliable transfer of a wide range of chemical and industrial fluids. Built with a polypropylene housing and wetted components, PTFE diaphragms and ball valves, and polypropylene check seats, this pump offers strong chemical resistance and dependable performance in demanding applications. It features 1-1/2 in flange side inlet and discharge connections, a single port flange manifold connection, self-priming capability, and a maximum flow rate of 126 gpm, making it well suited for fluid handling jobs requiring durability, efficiency, and compatibility with corrosive or sensitive media.
Key Features:
- - Air operated double diaphragm pump with bolt assembly design for dependable fluid transfer performance.
- - Constructed with polypropylene housing and wetted housing for lightweight durability and chemical resistance.
- - Equipped with PTFE diaphragms and ball valves plus polypropylene check seats for compatibility with aggressive media.
- - Delivers a maximum flow rate of 126 gpm and 121.5 gpm at 100 psi.
- - Rated for a maximum operating pressure of 120 psi and a maximum head of 289 ft.
- - Self-priming dry to 14 ft for efficient startup and operation in demanding pumping applications.
- - Handles solids up to 1/4 in and fluids with viscosities up to 40,000 cps.
- - Features 1-1/2 in flange side inlet and side discharge connections and a 1/2 in FNPT flange air intake connection.
- - Suitable for media temperatures ranging from 40 to 150 degrees F.
- - Chemical compatibility includes ammonium hydroxide, calcium carbonate, diesel exhaust fluid, hydrochloric acid, phosphoric acid, potassium hydroxide, sodium hydroxide, sodium hypochlorite, sulfuric acid, and water.
- - Overall dimensions measure 24.5 in H x 11 in W x 20.9 in L.
- - Approved for use with potable systems and complies with CE, REACH, and RoHS requirements.
- - Backed by a 5 year manufacturer warranty.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.00
- Package Width: 17.50
- Package Height: 26.50
- Package Weight: 51.00
