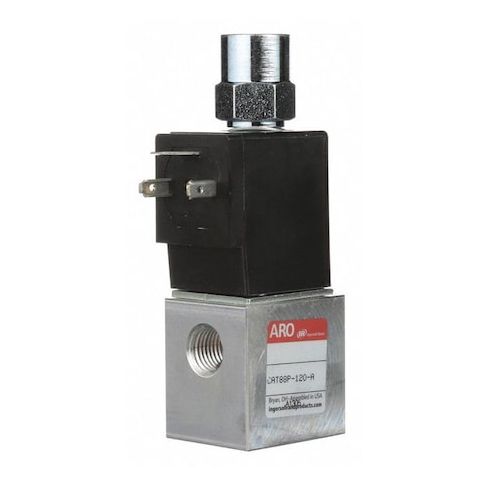

Solenoid Air Control Valve, 1/4 In, 120VAC MPN:CAT88P-120-A
Solenoid Air Control Valve, 1/4 In, 120VAC
The ARO Solenoid Air Control Valve is a reliable and efficient solution for controlling air flow in various industrial applications. With a 3-way/2-position design, it provides precise control over air pressure and flow rates, making it ideal for use in pneumatic systems, air compressors, and other equipment. Its compact size and NEMA 4 classification ensure durability and resistance to harsh environments. The valve's direct shifting technology and low power consumption of 15W make it a cost-effective option for applications requiring high airflow rates up to 7 CFM. Suitable for use in manufacturing, processing, and other industries where precise air control is critical.
Top product features:
- 3-Way/2-Position valve allows for two distinct positions of airflow control.
- Normally Open design allows for airflow to pass through the valve when the solenoid is not energized.
- Direct shifting technology enables fast and reliable switching between valve positions.
Top product applications:
- Air Compressor System
- Automotive Brake System
- Medical Oxygen Delivery System
Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 120V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/4 in, Max. CFM - Valves 7 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Normally Open, Body Style Body-Ported, Pilot Pressure Not Applicable, Coefficient of Volume 0.2, DIN Connectors Electrical Connections, Shifting Technology Direct, Power Consumption 15 W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 3.50
- Package Height: 1.30
- Package Weight: 0.80
Product info last updated on February 11, 2026 2:14am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
