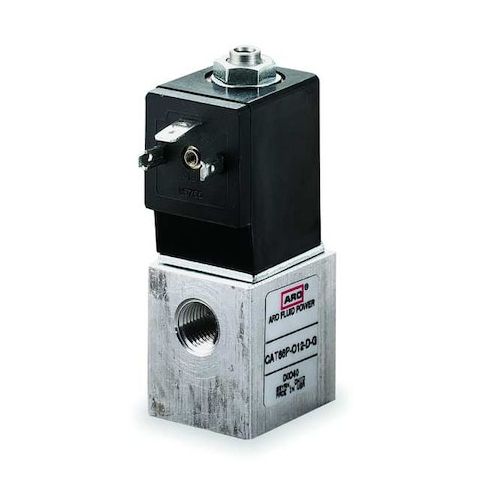

Solenoid Air Control Valve, 1/4 In, 24VDC MPN:CAT66P-024-D
Solenoid Air Control Valve, 1/4 In, 24VDC
The ARO Solenoid Air Control Valve is a reliable and efficient solution for controlling air flow in various industrial applications. This 24VDC valve features a 3-way/2-position design, allowing for precise control over airflow and pressure. With a maximum CFM of 7 and operational pressure range of 0-150 psi, it's ideal for use in pneumatic systems, air compressors, and other equipment that requires precise air flow management. The valve's compact size and NEMA 4 classification make it suitable for use in harsh environments, while its direct shifting technology and low power consumption ensure reliable and energy-efficient operation.
Top product features:
- Operational Pressure Range 0 to 150 psi allows for use in a variety of applications.
- Normally Closed operation provides a default state that can be overridden by the user.
- Direct Shifting Technology enables fast and precise control over airflow.
Top product applications:
- Automotive Air Suspension Systems
- Medical Device Air Compressor Systems
- Industrial Air Compressor Control Systems
Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/4 in, Max. CFM - Valves 7 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Normally Closed, Body Style Body-Ported, Pilot Pressure Not Applicable, Coefficient of Volume 0.2, DIN Connectors Electrical Connections, Shifting Technology Direct, Power Consumption 15 W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 3.60
- Package Height: 1.30
- Package Weight: 0.70
Product info last updated on January 14, 2026 12:22pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
