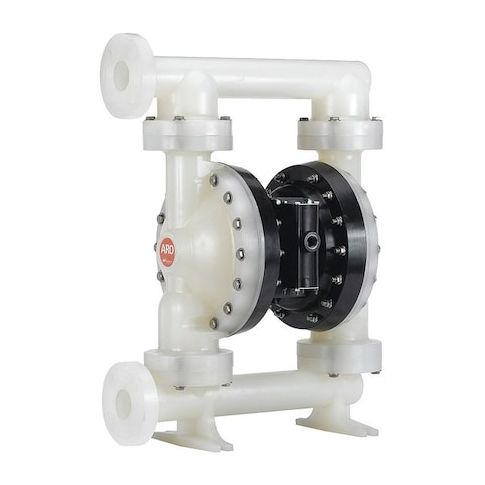

Double Diaphragm Pump, PX20P EXP Series, Air-Operated, Polypropylene/PTFE, 182 gpm MPN:PD20P-FPS-PTT

The ARO PD20P-FPS-PTT is a 2 in air operated double diaphragm pump designed for dependable transfer of chemicals, water, and other compatible fluids in demanding industrial applications. Built with a polypropylene housing and wetted components, PTFE diaphragms and ball valves, and polypropylene check seats, this pump offers strong chemical resistance and reliable performance. It features a self-priming design, handles solids up to 1/4 in, and delivers flow rates up to 182 gpm with a maximum operating pressure of 120 psi.

Key Features:

• - Air operated double diaphragm pump with bolt assembly design for industrial fluid handling applications.
• - Polypropylene housing and wetted housing provide corrosion resistance for a wide range of compatible chemicals.
• - PTFE diaphragms and ball valves help support chemical compatibility and long service life.
• - Polypropylene check seats are designed for reliable pump operation.
• - Delivers a maximum flow rate of 182 gpm and 172 gpm at 100 psi.
• - Maximum operating pressure is 120 psi with a maximum head of 289 ft.
• - Self-priming up to 14 ft dry for efficient startup and fluid transfer.
• - Handles solids up to 1/4 in and viscosities up to 50,000 cps.
• - 2 in flange center inlet and center discharge connections with a single port flange manifold connection.
• - 3/4 in FNPT flange air intake connection.
• - Suitable for media temperatures from 40 to 150 degrees F.
• - Chemical compatibility includes ammonium hydroxide, calcium carbonate, diesel exhaust fluid, hydrochloric acid, phosphoric acid, potassium hydroxide, sodium hydroxide, sodium hypochlorite, sulfuric acid, and water.
• - Overall dimensions are 28.7 in H x 22-1/4 in W x 24.2 in L.
• - Approved for use with potable systems.
• - Agency compliance includes CE, REACH, and RoHS.
• - Backed by a 5 year manufacturer warranty.
