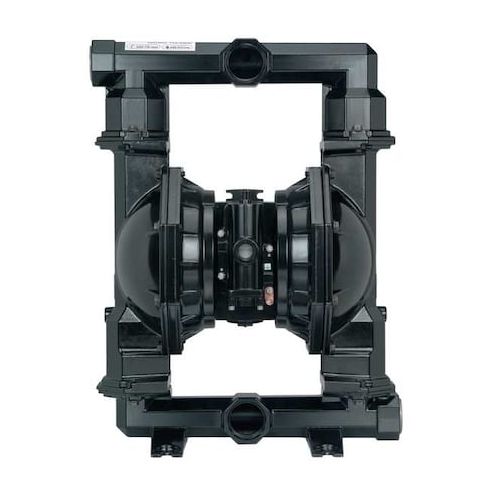

Double Diaphragm Pump, PX30X, Air Operated, Aluminum, Buna-N, 256 gpm, 3 in NPTF Ports MPN:PD30A-AAP-GGG-C

The ARO PD30A-AAP-GGG-C is an air operated double diaphragm pump designed for high-volume fluid transfer in demanding industrial and commercial applications. Built with an aluminum wetted housing and Buna-N diaphragms, valves, and check seats, this pump offers reliable performance with compatible media such as alcohol, diesel exhaust fluid, oils, and water. It delivers flow rates up to 256 gpm, operates at pressures up to 120 psi, and features 3 in NPTF intake and discharge connections for efficient material handling. With self-priming capability, solids handling up to 3/8 in, and support for viscosities up to 50,000 cps, this pump is well suited for a wide range of transfer and process duties.

Key Features:

• - Air operated double diaphragm pump with aluminum wetted housing for durable fluid transfer performance.
• - Buna-N diaphragm, valve, and check seat materials for compatibility with alcohol, diesel exhaust fluid, oils, and water.
• - Maximum flow rate of 256 gpm, with 240 gpm at 100 psi.
• - Operates at pressures up to 120 psi with maximum air consumption of 180 scfm.
• - 3 in NPTF media intake and discharge connections with 3/4 in FNPT air intake connection.
• - Self-priming up to 14 ft dry for efficient startup and operation.
• - Capable of handling solids up to 3/8 in and viscosities up to 50,000 cps.
• - Maximum head of 289 ft for demanding pumping applications.
• - Media temperature range from 10 degrees F to 180 degrees F.
• - Single port manifold with center intake and discharge configuration.
• - Overall dimensions: 23.6 in L x 23-1/16 in W x 27.9 in H.
