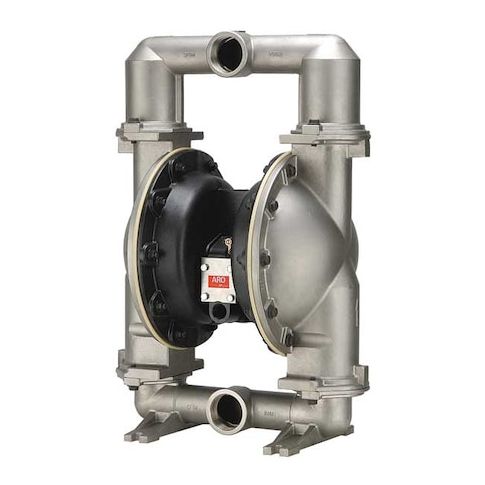

Double Diaphragm Pump, Air Operated, 316 Stainless Steel, Santoprene, 196 gpm, 2 in NPTF MPN:666251-EEB-C
The ARO Stainless Steel Double Diaphragm Pump is a reliable and efficient solution for various industrial applications. This air-operated pump is designed for use in harsh environments and can handle high flow rates of up to 196 gpm. With a maximum air consumption of 140 scfm, it can achieve a maximum head of 289 ft, making it suitable for a wide range of applications, including chemical processing, wastewater treatment, and oil and gas. Its durable Santoprene diaphragms and check seat ensure long-lasting performance and minimal maintenance, making it an ideal choice for industries that require high-pressure pumping capabilities.
Top product features:
- Air Operated for easy and convenient operation
- Santoprene Check Seat and Diaphragm Materials for durability and resistance to wear
- Maximum Flow Rate of 196 gpm for efficient liquid transfer
Top product applications:
- Water Treatment Plants
- Chemical Processing Plants
- Wastewater Treatment Plants
The ARO 666251-EEB-C is a 2 in. air operated double diaphragm pump designed for reliable transfer of a wide range of fluids in demanding industrial and commercial applications. It features a stainless steel pump housing with 316 stainless steel wetted components for corrosion resistance, along with Santoprene diaphragms, check seats, and ball valves for dependable chemical handling performance. This self-priming pump delivers flow rates up to 196 gpm, handles solids up to 1/4 in., and supports viscosities up to 50,000 cps. It is suitable for potable systems and offers ATEX certification for use in regulated environments.
Key Features:
- - Air operated double diaphragm pump with bolt assembly design for durable, heavy-duty fluid transfer applications.
- - Stainless steel housing with 316 stainless steel wetted housing helps provide corrosion resistance in harsh operating conditions.
- - Santoprene diaphragm, check seat, and ball valve materials support compatibility with a variety of fluids and chemicals.
- - Delivers a maximum flow rate of 196 gpm and 178 gpm at 100 psi for high-capacity pumping performance.
- - Maximum operating pressure of 120 psi with a maximum head of 289 ft.
- - Self-priming capability up to 27 ft dry and 30 ft wet helps simplify startup and operation.
- - Handles solids up to 1/4 in. and fluid viscosities up to 50,000 cps.
- - 2 in. center inlet and center discharge connections with NPTF media connections and single port manifold connection.
- - 3/4 in. FNPT air intake connection.
- - Media temperature range from -40 to 200 degrees F for broad application flexibility.
- - Chemical compatibility includes alcohol, ammonium hydroxide, antifreeze, calcium carbonate, diesel exhaust fluid, potassium hydroxide 50%, sodium hydroxide 20%, and water.
- - Suitable for use with potable systems.
- - Certified to ATEX and compliant with CE, REACH, and RoHS requirements.
- - Overall dimensions are 26.4 in. H x 23.8 in. W x 17.9 in. L.
- - Backed by a 5-year manufacturer warranty.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 28.50
- Package Height: 34.40
- Package Weight: 165.00
