Therm Air Vent, 300 psi, SS, 3/4 in, 2 Ports MPN:TTF-1R-3/4"
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6473135
Therm Air Vent, 300 psi, SS, 3/4 in, 2 Ports

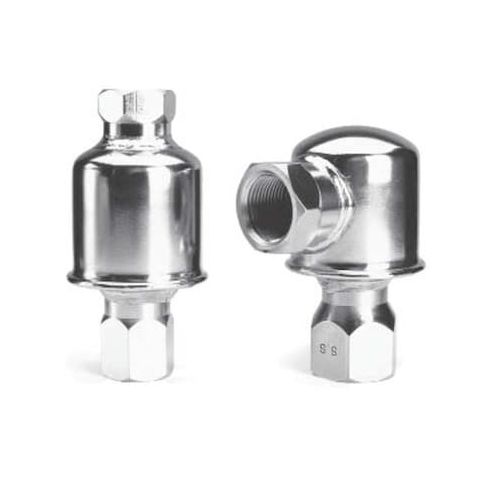

The Armstrong International Thermostatic Air Vent is designed for use in heat exchangers, providing efficient condensate management and pressure relief. Constructed from stainless steel and bronze, this air vent offers durability and resistance to corrosion. Its thermostatic control ensures optimal performance, while its copper gasket provides a secure seal. With a condensate capacity of 4,500 lb/hr, this air vent is suitable for a range of applications, including industrial processes and HVAC systems. Its compact design and horizontal installation orientation make it easy to integrate into existing systems, improving overall efficiency and reducing maintenance needs.
Top product features:
- Thermostatic control allows the air vent to regulate air flow in response to temperature changes.
- The air vent is made of bronze, providing corrosion resistance in certain environments.
- The condensate capacity of 4,500 lb/hr allows the air vent to handle high volumes of condensate.
Top product applications:
- Heat Exchangers
- Horizontal Installation
- Thermostatic Air Vent
Thermostatic Air Vent, Air Vent Material Bronze, Allowable Pressure - Maximum 300 psi, Application Heat Exchangers, Body Material Stainless Steel, Condensate Capacity 4,500 lb/hr, Configuration Angle, Distance Between Inlet and Outlet Port 4 13/16 in, Gasket Material Copper, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Inlet Port Connection Gender Female, Inlet Port Connection Size 3/4 in, Inlet Port Connection Type NPT, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 5.40
- Package Height: 4.40
- Package Weight: 1.18
Product info last updated on February 14, 2026 6:42pm UTC
Category: Pipes, Valves and Fittings
