Steam Trap, 75 psi, 377F, 5-1/8 In. L MPN:754A4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4658814
Steam Trap, 75 psi, 377F, 5-1/8 In. L

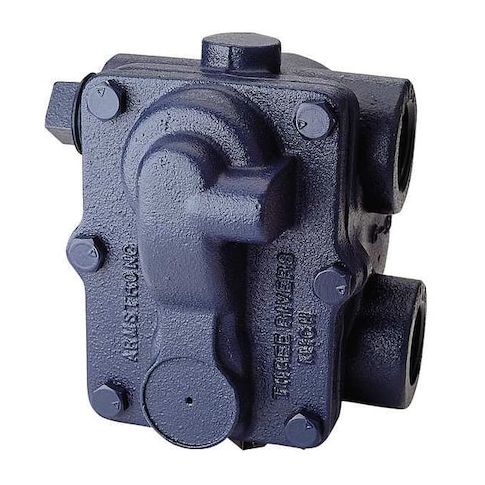

The Armstrong International Steam Trap is a reliable solution for managing steam condensate in high-pressure applications. Designed for use in steam lines, this trap efficiently removes condensate, preventing water hammer and ensuring a safe, efficient steam system. With a maximum capacity of 1,800 lb/hr at 75 psi, it handles heavy loads with ease. Its stainless steel float and cast iron body provide durability and resistance to corrosion. Suitable for horizontal installation, this steam trap is ideal for applications in power generation, industrial processes, and commercial facilities where high-pressure steam is used. Its compact size and easy installation make it a valuable addition to any steam system.
Top product features:
- Allowable temperature range up to 377 Degrees F
- Capacity to handle 1,800 lb/hr of condensate at maximum pressure
- Configuration with C Pattern design for efficient steam trap operation
Top product applications:
- Steam Lines
- Horizontal Installation
- Maximum Capacity at Maximum Pressure Load
Steam Trap, Allowable Temperature - Minimum Not Applicable, Application Steam Lines, Body Material Cast Iron, Condensate Capacity 1,800 lb/hr, Configuration C Pattern, Distance Between Inlet and Outlet Port 5 1/8 in, Float Material Stainless Steel, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Maximum Capacity at Maximum Pressure Load 1,800 lb/hr at 75 psi, Number of Ports 4, Operating Pressure - Maximum 75 psi, Operating Temperature - Maximum 377 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 5.60
- Package Height: 6.00
- Package Weight: 9.40
Product info last updated on February 12, 2026 8:18am UTC
Category: HVACR and Appliance Controls
