Lincoln Electric® MAXsa® 22 Submerged Arc Hard Automation Feed Head 40 VDC K2370-2
Lincoln Electric® MAXsa® 22 Submerged Arc Hard Automation Feed Head 40 VDC

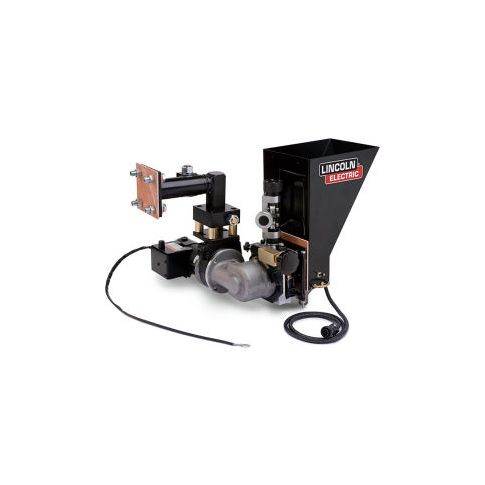

The Lincoln Electric MAXsa 22 Submerged Arc Hard Automation Feed Head is designed for hard automation applications, delivering accurate wire feeding of large diameter submerged arc wires. Its 40VDC permanent magnet high torque motor provides plenty of traction, allowing for wire diameters up to 7/32 in. and speeds up to 500 ipm. This feed head offers flexible configuration, closed loop speed control, and a wide range of wire feed speed capabilities, making it ideal for single, tandem, twinarc, or multiple arc applications. It's perfect for industries such as manufacturing, fabrication, and construction, where precise wire feeding is crucial.
Top product features:
- Designed specifically for hard automation applications the feed head delivers accurate wire feeding of large diameter submerged arc wires.
- A 40vdc permanent magnet high torque motor delivers plenty of traction to push up to 7/32 in. diameter solid wire.
- A wide range of wire feed speed gear ratio conversion kits allows for a wide range of wfs capabilities to match the requirements of your application.
Top product applications:
- Single Arc Applications
- Twin Arc Applications
- Multiple Arc Applications
This item is NOT returnable.
Designed specifically for hard automation applications the maxsa® 22 feed head delivers accurate wire feeding of large diameter submerged arc wires. Based on lincoln's proven gearbox and cast aluminum feedplate the maxsa® 22 model features a 40vdc permanent magnet high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6 mm) diameter solid wire. A top speed of up to 500 ipm (12.7 m/min) can be achieved by changing the gear ratio. Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" flexible configuration - can be used in single tandem twinarc or multiple arc applications closed loop speed control - facilitates full control over starting running and stopping wire feed speed wide range of wire feed speed gear ratio conversion kits allow for a wide range of wfs capabilities to match the requirements of your application rotatable feed head allows flexible accurate setup for fixturing standard accessories including an adjustable wire straightener cross-seam adjuster and electrical valve flux hopper and mounting bracket for tc-3 carriage what's included ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" maxsa® 22 feed head adjustable wire straightener cross-seam adjuster electric flux hopper mounting bracket for tc-3 carriageAdditional Information
- UNSPSC: 23271408
- Brand: ARC SOLUTIONS INC
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 20.50
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 80.00
