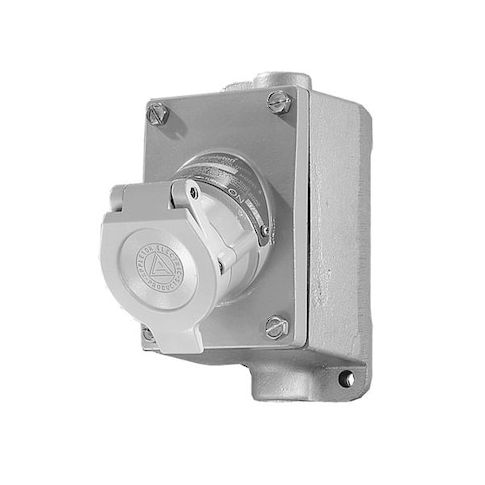

2W 3P 20A Hazardous Location Receptacle 120 VAC 5-20R MPN:ENR21201
2W 3P 20A Hazardous Location Receptacle 120 VAC 5-20R
This 2W 3P 20A hazardous location receptacle from Appleton Electric is designed for use in Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 areas, providing a safe and reliable connection point for equipment. With a 20A current rating and GFCI protection, it meets the most stringent safety standards. Ideal for use in explosive gas, dust, and flammable liquid environments, this receptacle is suitable for applications in oil and gas, chemical processing, and other industries where hazardous locations are present.
Top product features:
- Dust Ignition Proof
- Explosion Proof
- Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Top product applications:
- Industries with explosive or flammable gases or vapors, such as oil refineries or chemical plants
- Outdoor areas with potential water exposure, such as pool decks or marinas
- Areas with high dust levels, such as grain elevators or textile mills
Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 1 hp, Housing Material Copper-Free Aluminum, Hub Type Dead End, NEMA Enclosure Rating 3RX, 7CD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 125V AC
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 55 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.30
- Package Width: 9.30
- Package Height: 6.80
- Package Weight: 9.00
Product info last updated on January 22, 2026 1:19pm UTC
Category: Wiring Devices
