2W 3P 20A Hazardous Location Receptacle 240VAC 6-20R MPN:ENRC32202
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8070544

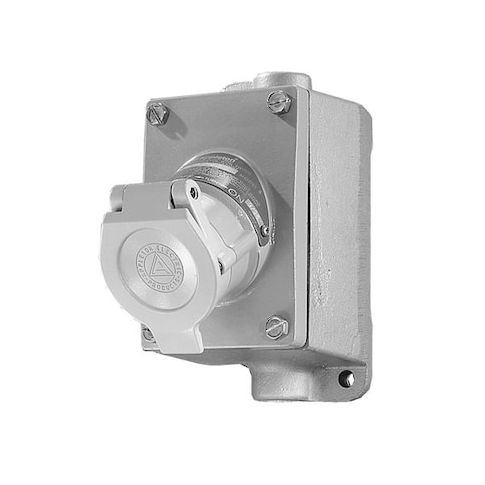

2W 3P 20A Hazardous Location Receptacle 240VAC 6-20R
The Appleton Electric 2W 3P 20A Hazardous Location Receptacle is designed for use in hazardous environments where safety and reliability are paramount. This 240VAC receptacle features a GFCI and can withstand harsh conditions, making it ideal for industrial and commercial applications. With a 20A current rating and 2 hp horsepower rating, it can support a variety of equipment, from pumps to compressors. Its copper-free aluminum housing and NEMA 3RX, 7CD, 9FG enclosure ensure durability and protection from dust and explosions. Perfect for use in Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, and Class III, Div 1 and 2 locations.
Top product features:
- Hazardous Location Specification for Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
- Dust Ignition Proof and Explosion Proof
- Copper-Free Aluminum Housing Material
Top product applications:
- Industrial Control Panels
- Explosion-proof environments such as oil rigs and chemical plants
- Heavy-duty machinery installations such as manufacturing facilities and construction sites
Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 2 hp, Housing Material Copper-Free Aluminum, Hub Type Feed Through, NEMA Enclosure Rating 3RX, 7CD, 9FG, NEMA Receptacle Configuration 6-20R, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 250V AC
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 8.30
- Package Height: 9.10
- Package Weight: 13.90
Product info last updated on February 4, 2026 6:34pm UTC
Category: Wiring Devices
