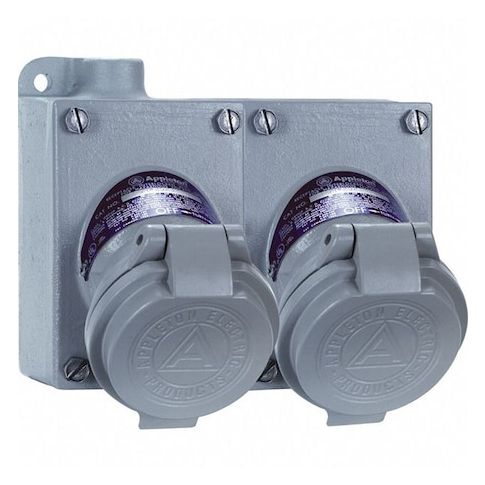

2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC
This 2W 3P 20A hazardous pin and sleeve receptacle from Appleton Electric is designed for use in Class I, Div 1 and 2, Group C and D hazardous locations. With a current rating of 20A and a voltage rating of 125-250V AC or 18V DC, this receptacle is suitable for a variety of applications, including industrial and commercial settings. Its non-flanged design and spring-loaded cap provide a secure and reliable connection, while its shrouded design offers added protection against electrical shock. Suitable for use in areas where flammable gases or vapors may be present, this receptacle is a safe and reliable choice.
Top product features:
- Hazardous location specification for Class I, Div 1 and 2, Group C, D
- Current rating of 20 A
- Spring-loaded cap for secure and easy operation
Top product applications:
- Industrial settings with hazardous locations such as refineries, chemical plants, and oil rigs
- Marine environments on boats and ships where electrical equipment is exposed to moisture and chemicals
- Areas with high levels of dust and debris such as construction sites and manufacturing facilities
Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Non-Flanged, Grounding Style Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, IP Rating Not Rated, NEMA Enclosure Rating Not Rated, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Phase Single, Shrouded Yes, Voltage Rating 125 to 250V AC, 18V DC, Cap Type Spring-Loaded Cap, Connection Orientation 60 Degrees Elbow, Face Diameter 2.63 in, Flange Diameter Not Applicable
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 55 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 13.70
- Package Height: 10.80
- Package Weight: 11.65
