2W 3P 20A Hazardous Location GFI Cover 120 VAC 5-20R MPN:EFS275-2023GFI
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5961611

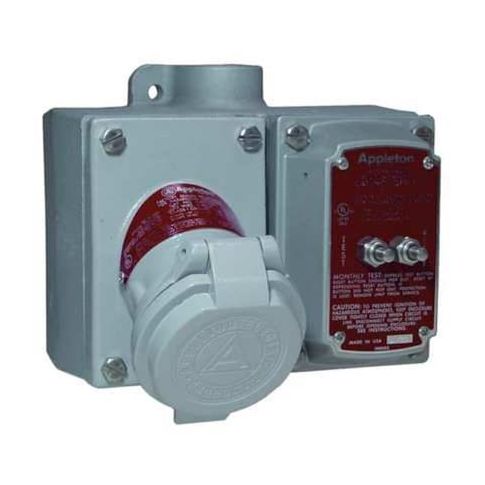

2W 3P 20A Hazardous Location GFI Cover 120 VAC 5-20R
This 2W 3P 20A Hazardous Location GFI Cover from Appleton Electric is designed for use in explosive and hazardous environments, meeting Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, and Class III, Div 1 and 2 specifications. The GFCI receptacle provides enhanced safety and protection against electrical shock. Suitable for use in areas where dust and explosion risks are high, such as chemical plants, oil refineries, and mining sites. The device's explosion-proof and dust ignition-proof properties ensure reliable operation in harsh conditions, making it an ideal choice for industries that require high levels of safety and reliability.
Top product features:
- 20A current rating
- GFCI (Ground Fault Circuit Interrupter) protection
- Dust Ignition Proof and Explosion Proof resistance properties
Top product applications:
- Marine applications in hazardous locations such as boat decks or engine rooms
- Industrial settings with high dust levels such as foundries or textile mills
- Oil and gas refineries and production facilities where explosion proofing is required
GFCI Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 1 hp, Housing Material Malleable Iron, Hub Type Dead End, NEMA Enclosure Rating 3, 3R, 3RX, 7BCD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 125V AC
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 55 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.70
- Package Width: 7.20
- Package Height: 6.70
- Package Weight: 8.25
Product info last updated on February 8, 2026 5:08am UTC
Category: Wiring Devices
