2W 3P 20A Hazardous Location GFI Cover 120 VAC 5-20R MPN:EFSC275-2023GFI
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5956142

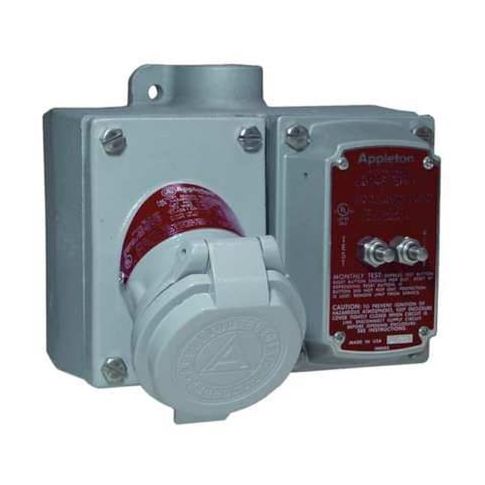

2W 3P 20A Hazardous Location GFI Cover 120 VAC 5-20R
The Appleton Electric 2W 3P 20A Hazardous Location GFI Cover is a reliable and durable solution for hazardous environments. Designed for use in Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, and Class III, Div 1 and 2 locations, this GFCI receptacle provides protection against electrical shock and arc faults. Its malleable iron housing and NEMA 3, 3R, 3RX, 7BCD, 9FG enclosure rating ensure its ability to withstand harsh conditions. Suitable for applications such as oil refineries, chemical plants, and mining operations, this product is a valuable addition to any hazardous location.
Top product features:
- GFCI protection for user safety
- Hazardous location certification for use in areas with explosive or flammable gases
- Dust ignition proof and explosion proof resistance for use in harsh environments
Top product applications:
- Industrial settings such as factories and warehouses
- Marinas and boat docks
- Oil refineries and chemical plants
GFCI Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 1 hp, Housing Material Malleable Iron, Hub Type Feed Through, NEMA Enclosure Rating 3, 3R, 3RX, 7BCD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 125V AC
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 55 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 4.30
- Package Weight: 1.68
Product info last updated on February 22, 2026 10:03am UTC
Category: Wiring Devices
