2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC MPN:CPS152-202
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5940182

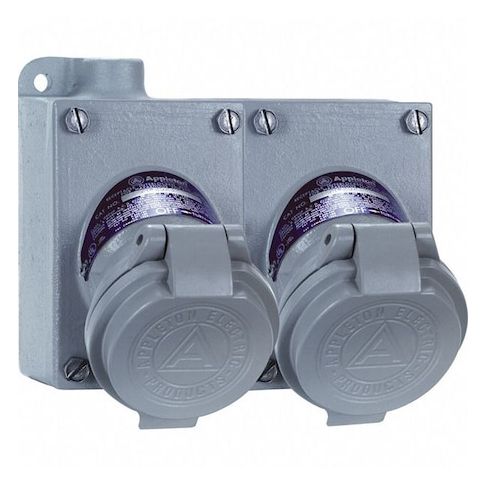

2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC
The 2W 3P 20A Hazardous Pin & Sleeve Receptacle from Appleton Electric is a reliable solution for hazardous locations. Designed for use in Class I, Div 1 and 2, Group C, D environments, this receptacle provides a safe and secure connection for electrical equipment. With a current rating of 20A and a voltage rating of 120/240VAC, it can handle demanding applications. The receptacle's shrouded design and spring-loaded cap ensure secure connections and easy access. Suitable for use in industrial settings, this receptacle is perfect for applications such as oil and gas refineries, chemical plants, and other hazardous locations where safety is paramount.
Top product features:
- Pin and sleeve receptacle design allows for safe and reliable electrical connections in hazardous locations.
- Grounding style is not applicable, indicating that the product is designed for use in locations where grounding is not necessary or not feasible.
- Spring-loaded cap provides a secure and easy-to-use mechanism for protecting the receptacle from dust and debris.
Top product applications:
- Industrial Control Panels
- Hazardous Area Lighting Fixtures
- Oil and Gas Wellhead Equipment
Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Non-Flanged, Grounding Style Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, IP Rating Not Rated, NEMA Enclosure Rating Not Rated, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Phase Single, Shrouded Yes, Voltage Rating 125 to 250V AC, 18V DC, Cap Type Spring-Loaded Cap, Connection Orientation 60 Degrees Elbow, Face Diameter 2.63 in, Flange Diameter Not Applicable
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 55 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.90
- Package Width: 13.80
- Package Height: 10.40
- Package Weight: 12.00
Product info last updated on April 4, 2026 8:01am UTC
Category: Wiring Devices
