2W 3P 20A Hazardous Location Receptacle 120 VAC 5-20R MPN:ENRC21201
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5933207

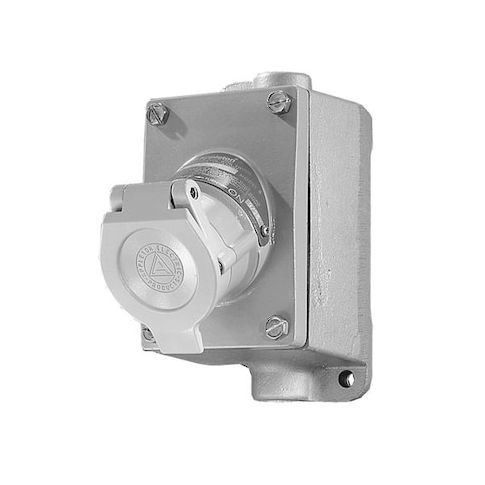

2W 3P 20A Hazardous Location Receptacle 120 VAC 5-20R
This 2W 3P 20A Hazardous Location Receptacle from Appleton Electric is designed for use in areas where explosion-proof and dust-ignition proof requirements are necessary. Suitable for Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, and Class III, Div 1 and 2 locations, it provides a reliable and safe solution for applications involving hazardous materials. The receptacle's 5-20R configuration and 20A current rating make it ideal for powering equipment up to 1 hp. Its compact design and copper-free aluminum housing ensure durability and resistance to harsh environments.
Top product features:
- Has a 20A current rating for high-power applications
- Meets Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 hazardous location specifications for use in explosive or flammable environments
- Has a 5-20R NEMA receptacle configuration for flexible power connections
Top product applications:
- Industrial settings with hazardous materials
- Outdoor areas with high dust levels
- Areas with high risk of water exposure
Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 1 hp, Housing Material Copper-Free Aluminum, Hub Type Feed Through, NEMA Enclosure Rating 3RX, 7CD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 125V AC
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 7.50
- Package Height: 5.10
- Package Weight: 8.35
Product info last updated on January 15, 2026 8:14am UTC
Category: Wiring Devices
