2W 3P 20A Hazardous Location Receptacle 240VAC 6-20R MPN:ENR21202
2W 3P 20A Hazardous Location Receptacle 240VAC 6-20R

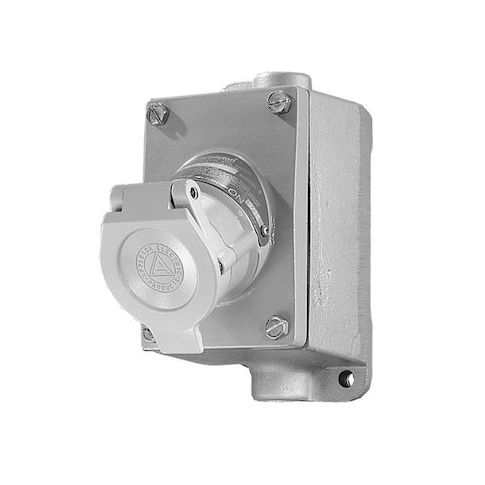

This 2W 3P 20A hazardous location receptacle from Appleton Electric is designed for use in areas where flammable gases or dust are present, such as oil rigs, chemical plants, and mining sites. The receptacle is explosion-proof and dust ignition-proof, ensuring safe and reliable operation in harsh environments. Its 20A current rating and 240VAC voltage rating make it suitable for powering high-power equipment, including 2-horsepower motors. The receptacle is also GFCI-protected, providing an additional layer of safety. Its compact design and durable construction make it an ideal solution for applications where space is limited and reliability is critical.
Top product features:
- Hazardous Location Specification for Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
- Dust Ignition Proof and Explosion Proof Resistance Properties
- Copper-Free Aluminum Housing Material
Top product applications:
- Industrial Control Panels
- Hazardous Location Areas such as Oil and Gas Refineries
- High-Temperature Areas such as Furnaces and Kilns
Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 2 hp, Housing Material Copper-Free Aluminum, Hub Type Dead End, NEMA Enclosure Rating 3RX, 7CD, 9FG, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof, Voltage Rating 250V AC
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 7.00
- Package Height: 5.80
- Package Weight: 8.50
Product info last updated on January 15, 2026 8:14am UTC
Category: Wiring Devices
