Interlocked Recept, Non-Fused, 30A, 4P, 3W MPN:WSRD33542N4SD
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5911412
Interlocked Recept, Non-Fused, 30A, 4P, 3W

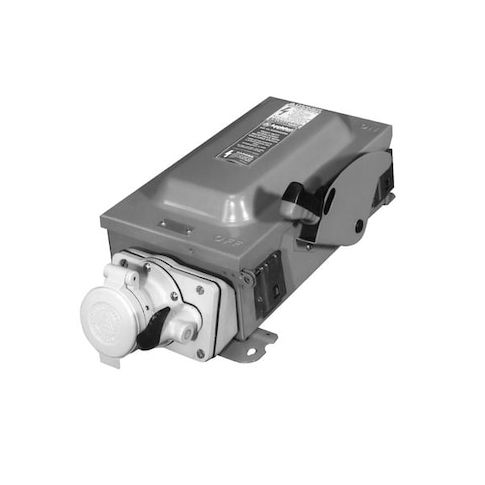

The Appleton Electric Interlocked Recept is a reliable and secure solution for high-amperage applications. This non-fused receptacle features a mechanical interlock and locking handle, ensuring that electrical connections are safe and tamper-proof. With a 30A current rating and 600V AC voltage rating, it's suitable for a variety of industrial and commercial settings. The receptacle's NEMA 12, 3, 3R, 4, and 4X enclosure rating makes it ideal for use in harsh environments. Perfect for use in machine shops, manufacturing facilities, and other high-power applications, this receptacle provides peace of mind and protects against electrical shock.
Top product features:
- Mechanical interlock prevents the receptacle from being used while the circuit breaker is tripped.
- Locking handle allows the receptacle to be secured in place.
- Disconnect switch enables the user to safely isolate the circuit.
Top product applications:
- Industrial Electrical Panel
- Utility Room Electrical Distribution
- Commercial Electrical Enclosure
Mechanical Interlock, Circuit Breaker Amp Rating Not Applicable, Circuit Breaker Type Not Applicable, Current Rating 30 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Hazardous Location Specification Not Applicable, Locking Handle Yes, NEMA Enclosure Rating 12, 3, 3R, 4, 4X, Number of Poles 4, Number of Wires 3, Voltage Rating 600V AC, Compatible Plug Manufacturer Part Number Not Applicable, Disconnect Switch Yes, Enclosure Lock Type Padlockable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.70
- Package Height: 8.90
- Package Weight: 5.90
Product info last updated on January 15, 2026 8:13am UTC
Category: Wiring Devices
