2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC MPN:CPS152-311
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5903082

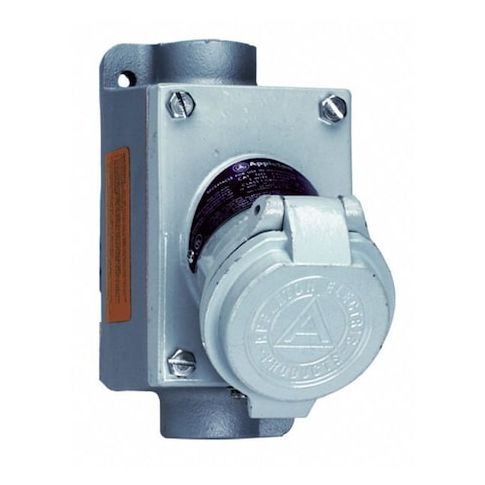

2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC
This 2W 3P 20A Hazardous Pin & Sleeve Receptacle from Appleton Electric is designed for use in hazardous locations, meeting Class I, Div 1 and 2, Group C, D specifications. Suitable for applications in areas with flammable gases or dust, this receptacle provides a reliable and safe connection for 120/240VAC and 18VDC power. Its spring-loaded cap and 60-degree elbow connection orientation make it easy to install and maintain. Ideal for use in oil and gas refineries, chemical plants, and other hazardous environments, this receptacle offers a safe and efficient solution for power distribution and equipment operation.
Top product features:
- Pin and Sleeve Receptacle design allows for safe and secure connection of electrical wires
- Spring-Loaded Cap feature enables easy and secure closure of the receptacle
- Shrouded design provides protection from accidental contact with electrical components
Top product applications:
- Hazardous area industrial equipment control panels
- High-voltage medical equipment installations
- Flammable gas processing plants
Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Non-Flanged, Grounding Style Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, IP Rating Not Rated, NEMA Enclosure Rating Not Rated, Number of Gangs 1, Number of Poles 3, Number of Wires 2, Phase Single, Shrouded Yes, Voltage Rating 125 to 250V AC, 18V DC, Cap Type Spring-Loaded Cap, Connection Orientation 60 Degrees Elbow, Face Diameter 2.63 in, Flange Diameter Not Applicable
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 55 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 11.20
- Package Height: 9.50
- Package Weight: 8.45
Product info last updated on January 15, 2026 8:13am UTC
Category: Wiring Devices
