3W 4P 100A Hazardous Location Receptacle 600VAC MPN:EBR1034EH90
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3047801

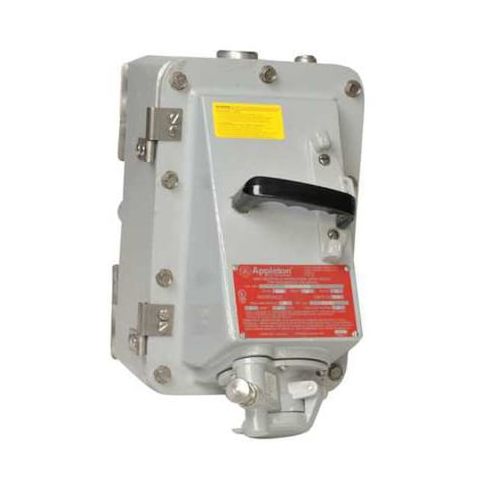

3W 4P 100A Hazardous Location Receptacle 600VAC
This hazardous location receptacle from Appleton Electric is designed for use in explosive and flammable environments, meeting Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, and Class III, Div 1 and 2 specifications. With a 100A current rating and 90A circuit breaker amp rating, it provides reliable power distribution in high-demand areas. The receptacle is also equipped with a locking handle for added safety and security. Suitable for applications such as oil and gas refineries, chemical plants, and other hazardous locations, this receptacle ensures safe and efficient power delivery in critical environments.
Top product features:
- Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
- Locking Handle Yes
- 4P 100A Hazardous Location Receptacle with 3W and 480V AC voltage rating
Top product applications:
- Industrial Control Panels
- Hazardous Location Areas such as Oil and Gas Platforms, Chemical Plants, and Refineries
- High-Density Data Centers and Server Rooms
Receptacle, Circuit Breaker Amp Rating 90 A, Circuit Breaker Type EHD 480V AC, Current Rating 100 A, Fuse Protection Not Applicable, Fuse Type Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle Yes, NEMA Enclosure Rating 3, 3R, 4, 4X, 7CD, 9FG, Number of Poles 4, Number of Wires 3, Voltage Rating 480V AC, Compatible Plug Manufacturer Part Number Not Applicable, Disconnect Switch No
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 45 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.60
- Package Width: 15.70
- Package Height: 18.80
- Package Weight: 45.00
Product info last updated on January 13, 2026 1:14pm UTC
Category: Wiring Devices
