1/2" NPT Brass Ball Valve Inline MPN:94ALF-103-01A
Free Shipping
In Stock
The Apollo International 94A Forged Brass Ball Valve is a reliable and cost-effective solution for general flow control applications. Ideal for use in HVAC, fuel gases, and fire protection, this valve provides maximum economy and consistent operation. Its 2-piece, full port design and blowout-proof stem ensure safe and efficient performance, while the adjustable stem packing nut allows for easy maintenance. Factory tested for quality assurance, this valve meets the most pertinent agency approvals, making it a trusted choice for a wide range of applications.
Top product features:
- 2-Piece, Full Port Design
- Blowout-Proof Stem
- Adjustable Stem Packing Nut
Top product applications:
- General flow control applications
- HVAC
- Fire protection

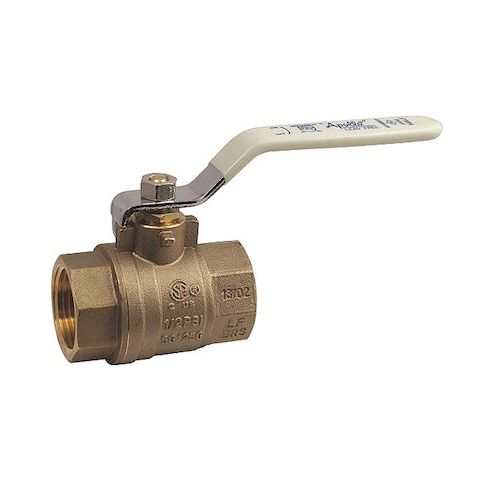

The APOLLO VALVES 94ALF-103-01A is a manual 2-way inline ball valve with a forged brass body and full port design for general flow control in water systems. It features a 1/2 in FNPT x FNPT connection, chrome plated brass ball, brass blowout-resistant stem, and PTFE seats and seals. This valve is part of the 94A series and is 100% factory tested.
Key Features:
- Valve type: Manual ball valve for on/off flow control.
- Construction: Two-piece forged brass body with inline body style.
- Port style: Full port design supports unrestricted flow through the valve.
- Connections: 1/2 in female NPT x female NPT ends.
- Ball and stem: Chrome plated brass ball with a brass blowout-resistant stem.
- Seat and seals: PTFE seat and seal materials.
- Pressure rating: 600 PSI CWP.
- Temperature range: -20 to 450 degrees F
- operating temperature 0 to 400 degrees F.
- Handle: Yellow lever handle made from plated steel and PVC
- non-locking.
- Standards and certifications: MSS SP-110, NSF 61, UL 125, UL 1477, UL 842.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.70
- Package Height: 2.00
- Package Weight: 0.44
