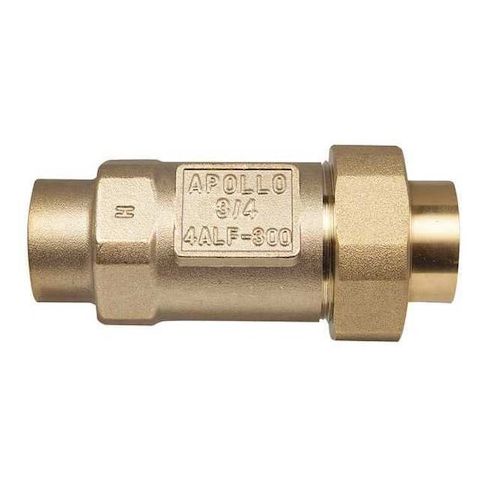

3/4" FNPT Bronze Dual Check Valve MPN:4ALF3A44A
Free Shipping
In Stock
Protect your plumbing system with the Apollo Valves 3/4in FNPT Bronze Dual Check Valve. This reliable device prevents backflow and ensures safe water pressure in residential and commercial applications. Its bronze construction withstands temperatures up to 180 degrees Fahrenheit, making it suitable for a wide range of installations. Compliant with industry standards, this valve meets the needs of plumbing professionals and homeowners alike. Ideal for use in water heaters, boilers, and other high-pressure systems, the Apollo Valves dual check valve provides peace of mind and helps prevent costly water damage.
Top product features:
- It has a dual check valve design to prevent backflow.
- It is made of bronze for durability and corrosion resistance.
- It can withstand temperatures up to 180 degrees F.
Top product applications:
- Water Filtration Systems
- Plumbing Fixtures
- Water Heaters
APOLLO VALVES 4ALF3A44A is a 3/4 in dual check valve with FNPT x FNPT connections for use in general-purpose backflow control applications with water and carbonated beverage lines. It features an inline bronze body with dual internal checks, a 2 psi cracking pressure, and a horizontal mounting orientation. The valve is constructed from lead-free bronze. Standards: ASSE 1003, IAPMO/ANSI/CAN Z1117, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
- Compliance: ASSE 1024 CSA B64.6.
Key Features:
- 3/4 in nominal valve size with 3/4 in female NPT connections on both ends
- Dual check flow design with two independent checks in series
- Bronze body with lead-free bronze material of construction
- For media: carbonated beverages and water
- Inline body design for horizontal installation
- 2 psi cracking pressure
- Maximum water pressure: 175 psi
- Maximum steam pressure: 125 psi SWP
- Operating temperature range: 33 degrees F to 180 degrees F
- Internal materials: acetal check mechanism, PTFE seal, Buna-N seat, and stainless steel spring
- Flow rate: 24 gpm
- Cap to inlet center: 2 in
- hex size: 2 3/8 in
- overall length: 4 1/2 in
- Standards: ASSE 1003, IAPMO/ANSI/CAN Z1117, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
- Compliance: ASSE 1024 CSA B64.6
- Field testable: no
- Hazard protection level: low health hazard
- Atmospheric vent: no
- freeze protection: no
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 2.40
- Package Height: 2.20
- Package Weight: 1.45
