Vacuum Breaker, Bronze, 1-1/4" W MPN:38LF314AS
Free Shipping
In Stock
The Apollo Vacuum Breaker is a reliable solution for preventing cross-connections and backflow in various applications. Designed to protect against back-siphonage and low head back-pressure, this device is ideal for use in residential and commercial settings where hose connections are present. Its tamper-proof protection and corrosion-resistant design ensure a secure and long-lasting installation. The manual drain feature makes maintenance a breeze. Lead-free and compliant with NSF/ANSI 372 standards, this product is a great choice for water supply systems in need of reliable backflow prevention.
Top product features:
- Tamper-Proof Protection
- Corrosion Resistant
- Manual Drain Feature
Top product applications:
- Hose Connection Vacuum Breakers
- Backflow Preventers
- Dual Check Backflow Preventers

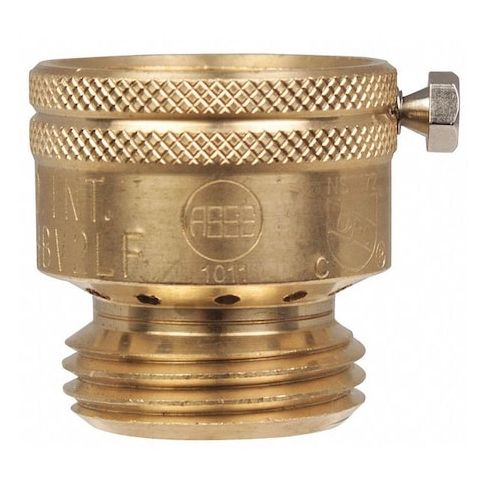

The APOLLO VALVES 38LF314AS is a 3/4 in hose bib vacuum breaker for water applications. It is designed to help prevent cross-connection caused by back-siphonage and is intended for low health hazard protection. This model features a brass body with a satin brass finish, stainless steel internal components, and a hose connection configuration with 3/4 in GHT female and male connections.
Key Features of the APOLLO VALVES 38LF314AS Vacuum Breaker:
- Vacuum Breaker Style: Hose bib vacuum breaker for hose connection backflow prevention.
- Connection Size: 3/4 in inlet and outlet.
- Connection Type: 3/4 in GHT female x 3/4 in GHT male.
- Body Material: Brass body with satin brass finish.
- Internal Components: Stainless steel check mechanism and spring.
- Drain Feature: Manual drain capability.
- Securing Mechanism: Break-away set screw provides tamper-proof protection.
- Freeze Protection: Freeze protection included.
- Flow Rate: 4.76 gpm.
- Pressure Rating: Maximum operating pressure of 125 psi.
- Temperature Range: 33 to 180 degrees F.
- Seal Materials: Buna-N seal and EPDM seat.
- Certifications/Standards: ASSE 1011, CSA B64.2, NSF, and NSF/ANSI 372 lead free.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 3.30
- Package Height: 3.00
- Package Weight: 0.25
