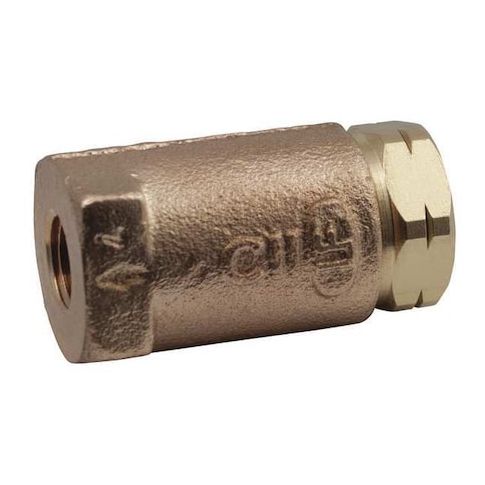

1/4" FNPT Lead Free Bronze Ball Cone Check Valve MPN:61LF10101
Free Shipping
In Stock
This 1/4in FNPT Lead Free Bronze Ball Cone Check Valve from APOLLO VALVES is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, it prevents backflow and ensures safe operation in water and steam systems. With a maximum water pressure of 400 psi and steam pressure of 125 psi WSP, it can handle demanding applications. Its lead-free design and compliance with regulatory standards make it a safe choice for use in California and other regions. Suitable for use in residential and commercial plumbing, it's a versatile solution for a range of applications.
Top product features:
- Lead Free Bronze Construction
- EPDM Seal Material
- Stainless Steel Spring Material
Top product applications:
- Steam Power Plant
- Water Treatment Plant
- HVAC System
APOLLO VALVES 61LF10101 is an inline ball cone check valve with a 1/4 in FNPT x FNPT connection and a lead-free bronze body. Rated for steam and water service within the specified pressure and temperature ranges, this valve features an inline check valve configuration for one-direction flow applications. The single-flow design, 0.5 psi cracking pressure, and horizontal or vertical mounting support horizontal or vertical inline mounting.
Key Features:
- 1/4 in nominal valve size with female NPT connections on both ends
- Inline ball cone mechanism with single-flow design
- Lead-free bronze body with EPDM seal
- RPTFE check mechanism material and glass-filled polypropylene seat material
- 316 stainless steel spring
- Flow rating: 0.85 gpm
- Cv: 0.85
- Cracking pressure: 0.5 psi
- Maximum water pressure: 400 psi non-shock CWP
- Maximum steam pressure: 125 psi WSP
- Operating temperature range: 33°F to 350°F
- Mounting orientation: horizontal or vertical
- Compliance/standards: NSF and CRN certifications apply
- Overall length: 2.06 in
- width: 1.12 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.40
- Package Height: 1.40
- Package Weight: 0.45
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
