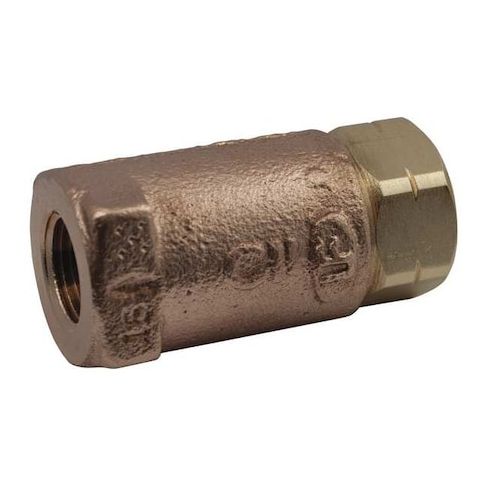

3/8" FNPT Lead Free Bronze Ball Cone Check Valve MPN:61LF50201
Free Shipping
In Stock
This 3/8in FNPT Lead Free Bronze Ball Cone Check Valve from Apollo Valves is a reliable solution for various applications, including water treatment, HVAC, and industrial processes. Its lead-free bronze body ensures compliance with environmental regulations, while its single-flow design and inline ball cone mechanism provide efficient flow control. The valve's cracking pressure of 0.5 psi and maximum water pressure of 400 psi make it suitable for a range of operating conditions. Its compact size and lightweight design also make it ideal for use in tight spaces and remote locations.
Top product features:
- Lead Free Bronze Construction
- EPDM Seal Material
- Stainless Steel Spring Material
Top product applications:
- Plumbing applications where a small flow rate is required, such as in residential water treatment systems
- Industrial processes where a low-pressure check valve is needed, such as in laboratory equipment
- Low-pressure steam systems where a small, corrosion-resistant check valve is required
The APOLLO VALVES 61LF50201 is a 3/8 in inline check valve with FNPT x FNPT female threaded connections. It features a lead-free bronze body with an inline ball cone design and poppet mechanism for one-direction flow, and closes in response to reverse-flow conditions in general-purpose water and steam systems. The valve supports horizontal or vertical mounting and has a 0.5 psi cracking pressure with a rated flow of 1.21 gpm.
Key Features:
- Valve type: Check valve with inline ball cone body design
- Size and connections: 3/8 in nominal size with 3/8 in FNPT x FNPT female NPT connections
- Body material: Lead-free bronze
- Internal materials: Poppet mechanism, EPDM seat and seal material, and 316 stainless steel spring
- Pressure ratings: 400 psi maximum water pressure, 400 psi operating pressure, and 15 psi WSP maximum steam pressure
- Temperature range: 33 degrees F minimum operating temperature
- maximum temperature rating: refer to manufacturer specifications for applicable service conditions
- Flow performance: 1.21 gpm flow rating with 0.5 psi cracking pressure
- Mounting orientation: Horizontal or vertical
- Certifications and standards: Meets multiple NSF and CRN certifications
- Dimensions: 2.31 in overall length
- 1 3/25 in overall height and width
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.45
