1-1/4" FNPT Lead Free Bronze Ball Cone Check Valve MPN:61LF10601
Free Shipping
In Stock
This 1-1/4in FNPT Lead Free Bronze Ball Cone Check Valve from APOLLO VALVES is a reliable and efficient solution for various industrial applications, including water treatment, chemical processing, and HVAC systems. Its lead-free bronze construction ensures durability and resistance to corrosion, while its single-flow design and inline ball cone mechanism provide smooth and quiet operation. The valve's compact size and horizontal or vertical mounting options make it ideal for tight spaces and flexible installation. With a maximum water pressure of 400 psi and a flow rate of 44 gpm, this valve is perfect for applications requiring precise control and minimal pressure drop.
Top product features:
- Lead-free bronze construction provides resistance to corrosion and ensures a long-lasting product.
- The ball cone design allows for reliable flow control and prevents backflow.
- EPDM seals ensure a tight shut-off and prevent leaks in a wide temperature range.
Top product applications:
- Backflow prevention in residential water systems
- Preventing contamination in laboratory water supplies
- Shut-off in residential irrigation systems

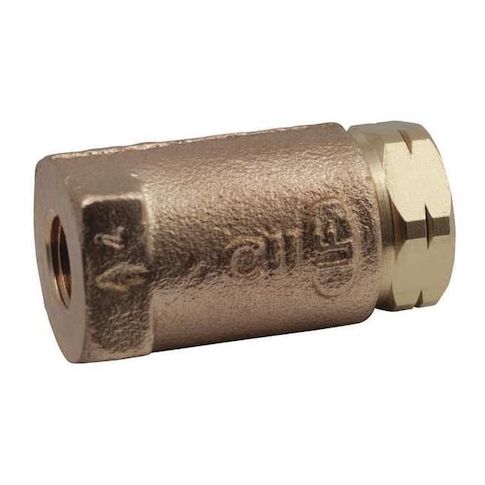

APOLLO VALVES 61LF10601 is an inline ball cone check valve with a 1-1/4 in FNPT x FNPT connection. Intended for one-direction flow and reverse-flow reduction in compatible general purpose water and steam systems. The lead-free bronze body, 0.5 psi cracking pressure, and horizontal or vertical mounting options allow horizontal or vertical mounting configurations.
Key Features:
- Valve type: Inline ball cone check valve.
- Connection size and type: 1-1/4 in female NPT on both ends.
- Body material: Lead-free bronze.
- Flow capacity: 44 gpm with a Cv of 44.
- Cracking pressure: 0.5 psi.
- Pressure ratings: 400 psi maximum water pressure and 125 psi maximum steam pressure.
- Temperature range: 33°F minimum to 350°F maximum.
- Internal materials: RPTFE check mechanism, EPDM seal, glass-filled polypropylene seat, and 316 stainless steel spring.
- Mounting orientation: Horizontal or vertical.
- Certifications and standards: Meets multiple NSF standards and CRN.
- Dimensions: 4.19 in overall length, 2.37 in overall height and width, and 2.37 in hex size.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 3.60
- Package Height: 2.90
- Package Weight: 2.70
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
