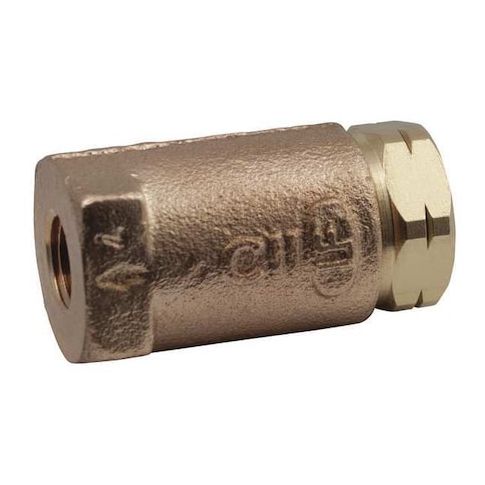

3/8" FNPT Lead Free Bronze Ball Cone Check Valve MPN:61LF10201
Free Shipping
In Stock
This 3/8in FNPT Lead Free Bronze Ball Cone Check Valve from APOLLO VALVES is a reliable and efficient solution for various applications, including residential, commercial, and industrial systems. Its lead-free design ensures compliance with environmental regulations, while its bronze body provides durability and resistance to corrosion. The valve's single-flow design and inline ball cone mechanism allow for smooth operation and minimal pressure drop. Ideal for use in water supply lines, irrigation systems, and steam applications, this valve offers a high flow rate of 1.21 gpm and can withstand temperatures up to 180°F and pressures up to 400 psi.
Top product features:
- Lead Free Bronze Construction
- EPDM Seal Material for Chemical Resistance
- RPTFE Seat Material for High-Pressure Applications
Top product applications:
- Water treatment systems
- Steam trap applications
- Low-pressure steam distribution systems
APOLLO VALVES 61LF10201 is a 3/8 in. inline ball cone check valve with FNPT x FNPT female threaded connections. It is specified for general purpose service with steam and water, allowing flow in one direction and closing to help prevent reverse flow in piping systems. The lead-free bronze body, ball check mechanism, and compact inline design support horizontal or vertical mounting.
Key Features:
- Valve type: Inline ball cone check valve, single-flow design
- Size: 3/8 in. nominal valve size and pipe size
- Connections: 3/8 in. FNPT x FNPT with female NPT connections on both ends
- Body material: Lead-free bronze
- Check mechanism: Ball with RPTFE mechanism material
- Seal material: EPDM
- Seat material: Glass-filled polypropylene
- RPTFE
- Spring material: 316 stainless steel
- stainless steel
- Cracking pressure: 0.5 psi
- Flow capacity: Cv 1.21
- flow 1.21 gpm
- Pressure ratings: 400 psi maximum water pressure
- 125 psi steam
- Temperature range: 33°F minimum to 350°F maximum
- Mounting orientation: Horizontal or vertical
- Certifications/standards: Multiple NSF standards
- CRN
- Overall length: 2.13 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.40
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
