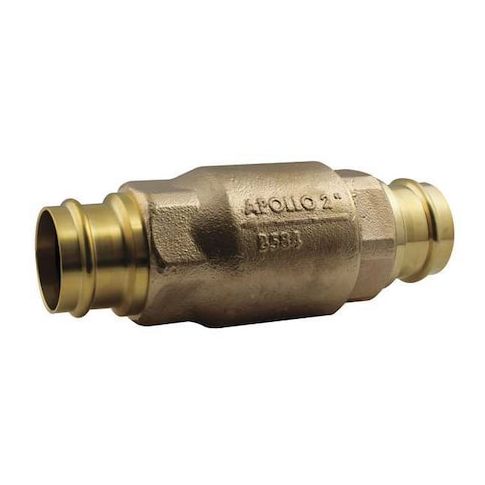

2" Press Lead Free Bronze Ball Cone Check Valve MPN:61LF10801PR
Free Shipping
In Stock
The 2in Press Lead Free Bronze Ball Cone Check Valve from APOLLO VALVES is a reliable solution for various applications requiring precise control and minimal flow restriction. Suitable for use in both horizontal and vertical orientations, this valve ensures efficient flow in water and steam systems. Its lead-free bronze construction and high-quality EPDM seal provide excellent durability and resistance to corrosion, while its 316 stainless steel spring ensures long-lasting performance. Ideal for use in commercial and industrial settings, this valve is perfect for applications such as water treatment, HVAC systems, and chemical processing, where precise flow control is crucial.
Top product features:
- Flow Design Single
- Seat Material RPTFE
- Spring Material 316 Stainless Steel
Top product applications:
- Water treatment systems
- Steam power plants
- Industrial process control systems
APOLLO VALVES 61LF10801PR is a 2 in. inline ball cone check valve with press x press female connections and a lead-free bronze body. It is intended for one-way flow in general purpose water and steam service, using a ball check mechanism with a 0.5 psi cracking pressure to check reverse flow. This valve can be mounted horizontally or vertically and has a rated flow of 81 gpm with a Cv of 81.
Key Features:
- Valve type: Ball cone check valve with inline body design and single flow path.
- Body material: Lead-free bronze.
- Connections: 2 in. press x press, female on both ends.
- Check mechanism: Ball with RPTFE seat and EPDM seal.
- Spring material: 316 stainless steel.
- Pressure ratings: 300 psi maximum operating pressure
- 250 psi non-shock water pressure
- 15 psi WSP steam pressure.
- Temperature range: 0°F to 250°F.
- Flow capacity: 81 gpm
- Cv 81.
- Mounting orientation: Horizontal or vertical.
- Certifications/standards: Multiple NSF standards and CRN.
