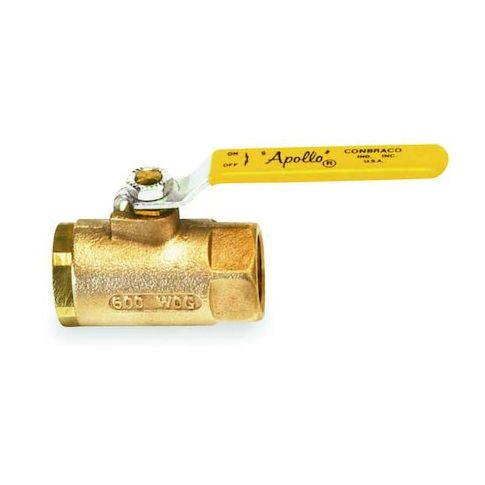

Manual Two-Way Straight Ball Valve, 2 in FNPT x 2 in FNPT, 600 psi Max Pressure, Bronze MPN:7010801
Free Shipping
In Stock
The Apollo 70 Series Manual Two-Way Straight Ball Valve is a reliable and versatile solution for general purpose applications. This 2-piece standard port valve features female NPT connections and is built with premium materials and heavy-duty construction for trusted performance. Its adjustable stem packing gland and blowout proof stem design ensure secure operation, while RPTFE seats and MPTFE stem packing rings provide long-lasting durability. Suitable for use in a variety of industries, including chemical processing, water treatment, and HVAC, this valve is a great choice for applications requiring high pressure and precise control.
Top product features:
- Premium Materials and Heavy Duty Construction
- Adjustable Stem Packing Gland
- Blowout Proof Stem Design
Top product applications:
- Water treatment plants
- Oil and gas refineries
- Industrial process control systems
APOLLO VALVES 7010801 is a manual 2-way ball valve from the 70 Series with a two-piece inline bronze body and 2 in female NPT connections on both ends. It is a standard port valve with a chrome plated bronze ball, PTFE seats and seals, and a brass blowout-resistant stem. This valve is designed for general purpose service, including steam, with a pressure rating of 600 PSI CWP and 150 PSI WSP.
Key features of the APOLLO VALVES 7010801:
- Valve type: Manual ball valve with 2-way flow control.
- Construction: Two-piece heavy pattern bronze body with inline body style.
- Connections: 2 in FNPT x FNPT ends for female threaded NPT pipe connections.
- Port style: Standard port design.
- Ball and stem: Chrome plated bronze ball with brass blowout-resistant stem.
- Seat and seal materials: PTFE seat and seal materials.
- Pressure rating: 600 PSI CWP
- 150 PSI WSP for steam service.
- Temperature range: -20 degrees F to 450 degrees F
- maximum operating temperature 500 degrees F.
- Handle: Yellow lever handle made of PVC and zinc-plated steel
- non-locking.
- Vacuum rating: Rated to 29 in Hg.
- Standard: MSS SP-110.
- Manufacturing: Manufactured in the USA.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.40
- Package Width: 5.00
- Package Height: 3.00
- Package Weight: 5.95
