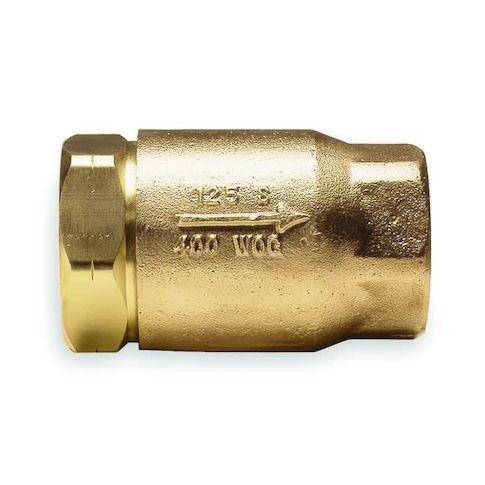

3" FNPT Bronze Ball Cone Spring Check Valve MPN:6110001
Free Shipping
In Stock
The 3in FNPT Bronze Ball Cone Spring Check Valve from APOLLO VALVES is a reliable and efficient solution for various industrial applications. This inline check valve is designed to prevent backflow and ensure smooth fluid flow in horizontal and vertical orientations. Its bronze body and stainless steel spring provide durability and resistance to corrosion, while the EPDM seal ensures a tight seal. Suitable for use in water and steam systems, this valve can withstand pressures up to 400 psi and temperatures up to 180°F. Ideal for use in water treatment, chemical processing, and HVAC systems, it offers a reliable and long-lasting solution for maintaining fluid flow and preventing backflow.
Top product features:
- Flow Design Single
- Inline Ball Cone Mechanism and Body Design
- Stainless Steel Spring Material
Top product applications:
- Water treatment systems
- Steam power plants
- Industrial process control systems
APOLLO VALVES 6110001 is a 3 in ball cone spring check valve with an inline bronze body and FNPT x FNPT connections. It is a one-way valve intended for general purpose service applications within the stated ratings, with a check mechanism designed for single-direction flow. Mounting orientation: horizontal or vertical. Rated for steam service within the stated pressure and temperature limits.
Key Features:
- 3 in nominal valve size with 3 in female NPT connections on both ends.
- Inline ball cone design.
- Cast bronze body with bronze construction.
- Ball check mechanism with RPTFE seat material.
- EPDM seal and 316 stainless steel spring.
- Cracking pressure: 0.5 psi.
- Flow capacity: Cv 265.
- Maximum water pressure: 400 psi non-shock CWP
- maximum operating pressure: 400 psi.
- Maximum steam pressure: 125 psi SWP
- also listed as 125 psi WSP and 125 psi at 350 degrees F.
- Operating temperature range: 33 degrees F to 406 degrees F.
- Overall dimensions: 8.13 in L x 4-1/8 in H x 4.63 in W.
- Standards: Build America Buy America (BABA) Act, Buy American Act (BAA), CRN.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 6.90
- Package Height: 6.50
- Package Weight: 16.70
